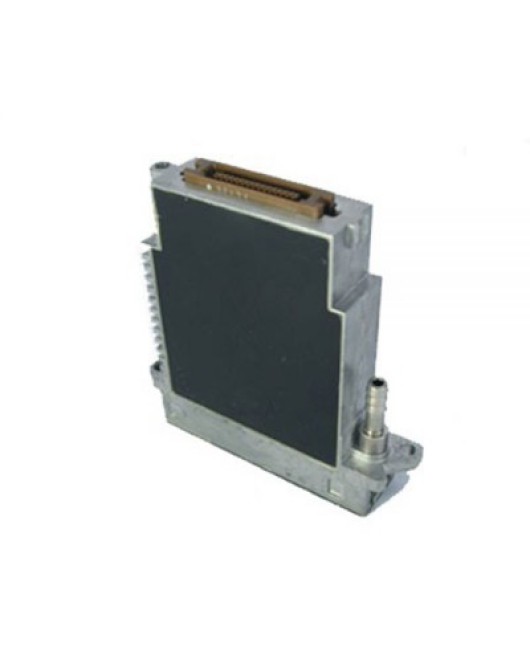

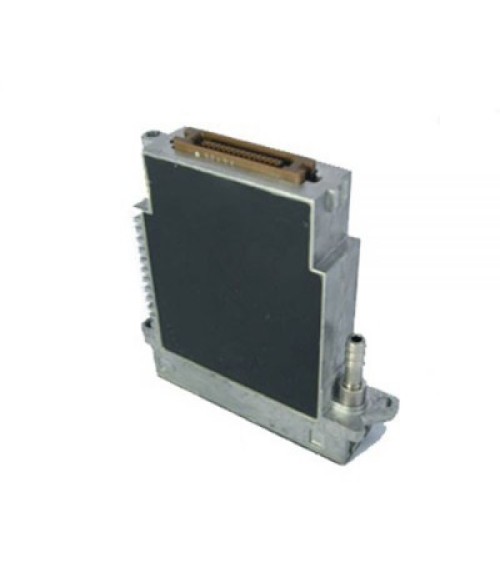

Konica 256/14pl Printhead
The Konica 256/14pl Printhead is an entry level, compact, shear mode, piezo on-demand print head that is usable in binary mode only. It is suitable for both wide format and industrial applications. The Konica 256/14pl Printhead has 256 nozzles with a droplet size of 14pl and a nozzle resolution of 180 dpi. It is compatible with oil based and solvent inks. This printhead is not compatible with HP 8000 printers. This is Konica original print head and it includes the Head ID and the necessary waveform information.
To be used with: Human X-JetB 1808
Remarks: Original
Specification:
- Drive Mode: Piezo Drop-On-Demand
- Nozzle Resolution: 180 dpi
- Nozzle Number: 256 nozzles
- Drop Volume: 14pl
- Ink Compatibility: Oil Based and Solvent
- Heater: not integrated
Konica 256 /14pl Printhead
- Product Code: KNC63758
- Brand: KONICA
- Product Code: KNC63758
- Availability: In Stock
$220.00
Konica 256/14pl Printhead
The Konica 256/14pl Printhead is an entry level, compact, shear mode, piezo on-demand print head that is usable in binary mode only. It is suitable for both wide format and industrial applications. The Konica 256/14pl Printhead has 256 nozzles with a droplet size of 14pl and a nozzle resolution of 180 dpi. It is compatible with oil based and solvent inks. This printhead is not compatible with HP 8000 printers. This is Konica original print head and it includes the Head ID and the necessary waveform information.
To be used with: Human X-JetB 1808
Remarks: Original
Specification:
- Drive Mode: Piezo Drop-On-Demand
- Nozzle Resolution: 180 dpi
- Nozzle Number: 256 nozzles
- Drop Volume: 14pl
- Ink Compatibility: Oil Based and Solvent
- Heater: not integrated
