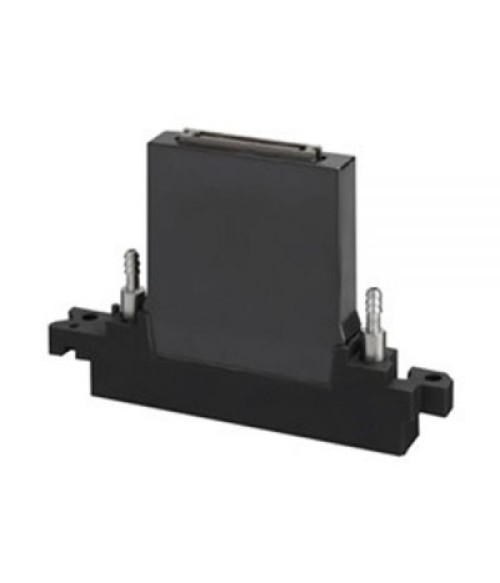

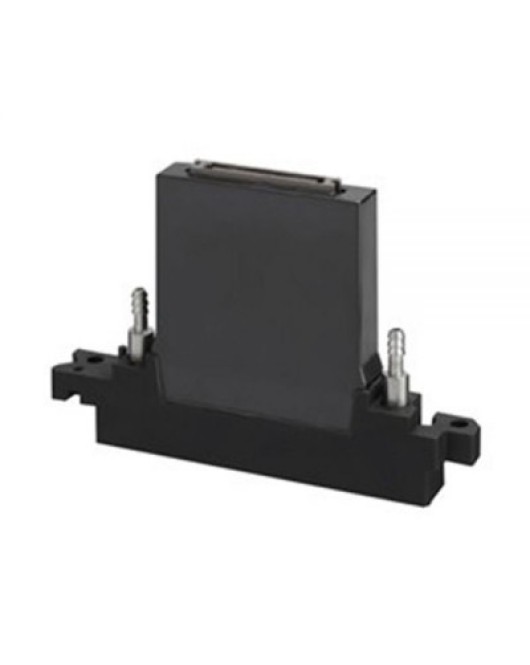

Konica 6988H (1024i-13pl) UV Printhead
To be used with: Konica
Konica KM1024 LHB 42PL UV Printhead
Remarks: Original
| Printhead Name | KM1024SHB | KM1024MNB | KM1024MHB | KM1024LNB | KM1024LHB |
| Technology | Piezo Drop on Demand (Shared wall 3 cycle) | ||||
| Resolution | 180dpi × 2lines = 360dpi | ||||
| Number of Nozzles | 512nozzles × 2lines = 1024nozzles | ||||
| Nozzle Pitch | 70.5 micrometer (141 micrometer 2lines) | ||||
| Drop Size | 6 pl | 14 pl | 42 pl | ||
| Max Frequency | 30.0 kHz | 12.8 kHz | 6.7 kHz | 7.6 kHz | |
| Printing Width | 72mm | ||||
| Dimensions | W131mm × D18mm × H89mm | ||||
| Weight | 150g | ||||
| Grey scale | 8 levels | ||||
Konica KM1024 LHB 42PL UV Printhead
- Product Code: KNC637565
- Brand: KONICA
- Product Code: KNC637565
- Availability: In Stock
$800.00
