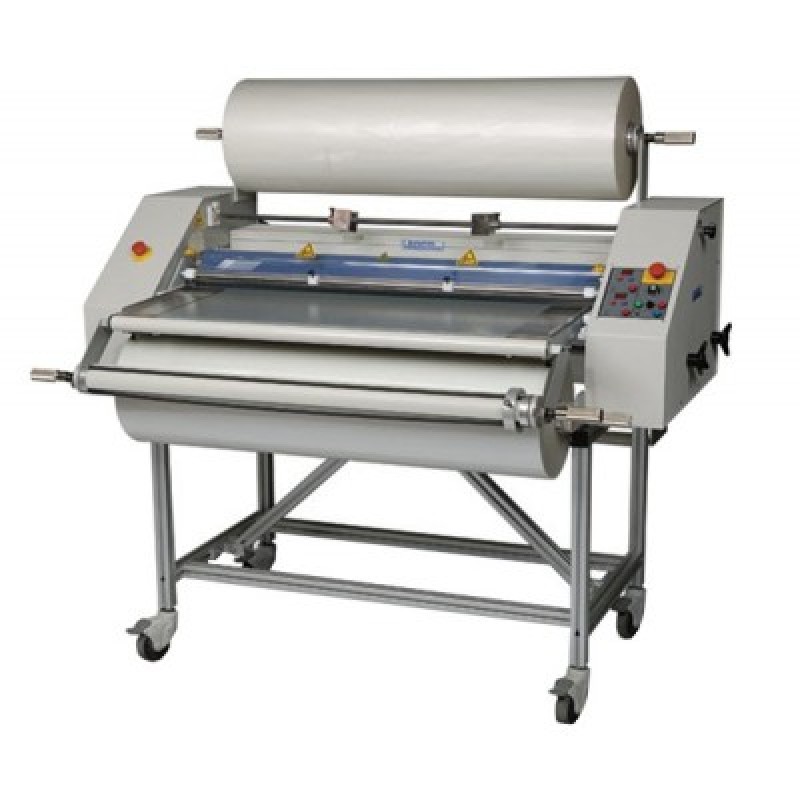

Ledco 60 inch Digital Laminator

USD 24,000.00

  • Brand: LEDCO
  • Product Code: hrs2g2wlz787
  • Availability: In Stock

Product Description



The 60 inch wide Ledco Digital Laminator was the first laminator designed exclusively for the owners of 50 inch inkjet printers. The Ledco Digital 60 is ideal for the large laminating marketplace that needs to protect and enhance the output from their 50 inch printers.

The 60 inch wide Ledco Digital Laminator was the first Laminator designed exclusively for the owners of 50 inch inkjet printers. The 60 inch Ledco Digital will do all the finishing tasks required of a large format imaging shop: laminating one side or two, encapsulating, mounting with heat activated (dry mount) or cold pressure-sensitive adhesives (PSA), simultaneous mounting and laminating, and application of cold adhesives.

This Ledco laminator was made to be very easy to use, incorporating many of the glitch-proof features Ledco has developed over 40 years of making laminators for schools and commercial finishing shops. This unit will laminate one item then mount and laminate the next in one pass using mounting boards up to 1/2-inch thick. No setup change is needed. In fact, you can laminate one item, then mount and laminate the next in one pass without even stopping the machine. With a top speed of 30 FPM and a sustainable laminating speed of 12 FPM with 5-mil film, the Ledco Digitals are much faster than the other machines made for big format color applications. An optional release liner takeup allows these machines to apply cold laminating films, vinyls, and other PSA materials needing removal of a liner.

Standard features on this unit include variable speed, independent top and bottom heat controls, spacious feed tray, powerful film cooling system, and swing-away heating units for cold applications and easy cleaning of the rollers.



  • Brand
    Ledco
  • Width
    60"
  • Min/Max Film Thickness
    1.5 mil - 10 mil
  • Core Size
    3"
  • Laminating Type
    Hot/Cold
  • Heating Method
    Hot Shoe
  • Warm Up Time
    20 min
  • Reverse Switch
    Yes
  • Speed (Feet per Minute)
    20fpm
  • Adjustable Temperature
    Yes
  • Ready Light
    No
  • Safety Auto Shutoff
    No
  • Safety Shield
    1
  • Feed Table Safety Switch
    Yes
  • Feed Table Alignment Guide
    Yes
  • Key Lock
    No
  • Built-in Horizontal Trimmer
    No
  • Mounting Capability
    Yes
  • Mounting Thickness in mil
    1/2"
  • Roller Gap Adjustment
    No
  • Cooling Fans
    1
  • Electrical Requirements
    240V; 60Hz; 40A; 7400W
  • Machine Dimensions
    71" x 39" x 43"
  • Weight
    880 lbs
  • Shipping Weight
    1200 lbs
  • Safety Approval
    CE
  • Units Per Parcel
    1
  • Country Of Origin
    USA
  • Free Shipping
    No
  • Package Type
    Each
  • Warranty
    1 Year
