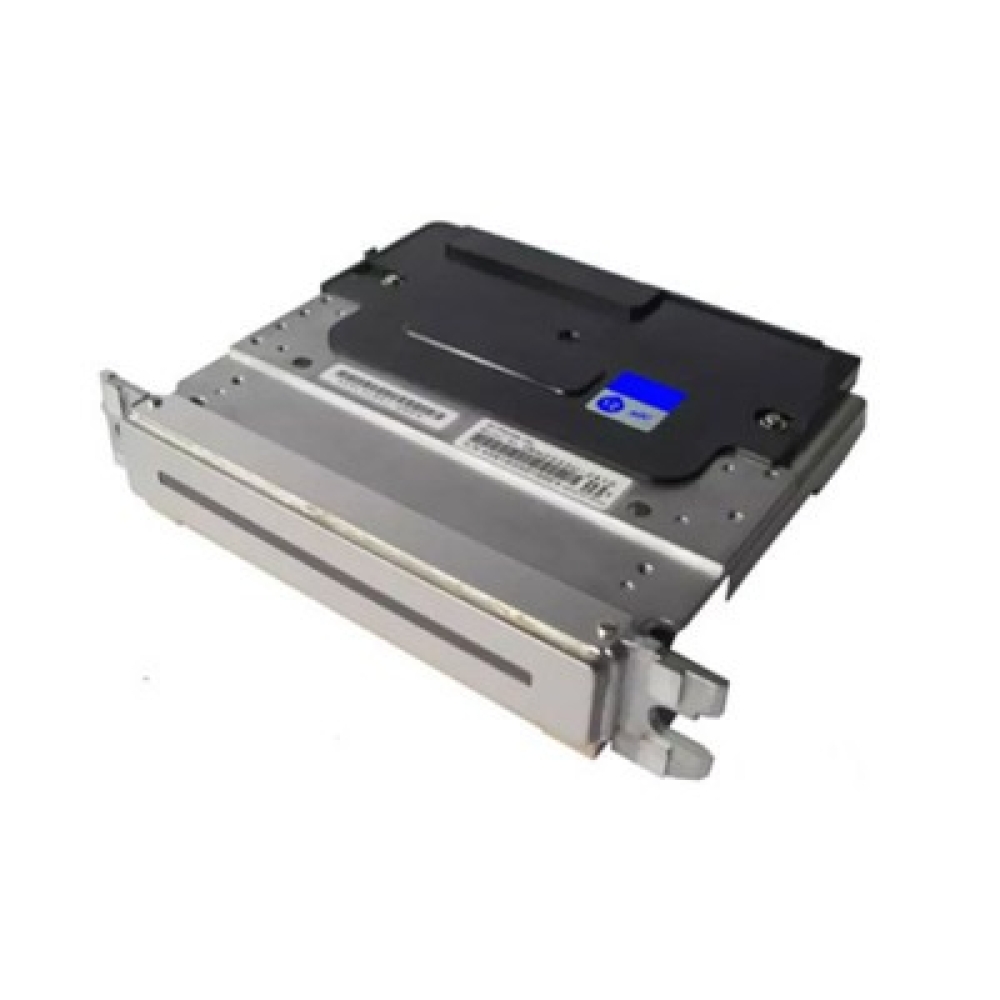

Seiko 508GS 12PL Greyscale Printhead-IRH2533U-2410
This Seiko 508GS 12PL solvent printhead is suitable for a range of printers, including Infiniti printers. The Seiko 508GS is a state of the art grayscale print head with a built-in damper assembly and a nozzle guard. This is the original Seiko part (number IRH2533U-2410)
To be used with:
infiniti challenger FY-3266T / Challenger FY-306T / Challenger FY-3208T / Challenger FY-3286T / Challenger FY-3286J / Challenger FY-3208GS, Crystek X5300, Leyenda 3200F3 / 1800T3, Nuocai NC-SPT2531, Forni HS1804, Icontek TW-1800J3, OraJet J18, CrystalJet 6000 series
Specifications:
- Active Print Width: 72mm
- Nozzles: 508
- Nozzle Plate: Non-Wetting
- Physical resolution: 180 dpi
- Firing Frequency: 18 kHz (and multiples)
- Drop Volume: multiple of 12pl (up to 7 drops)
Seiko 508GS 12PL Greyscale Printhead-IRH2533U-2410
- Product Code: SKO0634343
- Brand: SEIKO
- Product Code: SKO0634343
- Availability: In Stock
USD 550.00
Seiko 508GS 12PL Greyscale Printhead-IRH2533U-2410
This Seiko 508GS 12PL solvent printhead is suitable for a range of printers, including Infiniti printers. The Seiko 508GS is a state of the art grayscale print head with a built-in damper assembly and a nozzle guard. This is the original Seiko part (number IRH2533U-2410)
To be used with:
infiniti challenger FY-3266T / Challenger FY-306T / Challenger FY-3208T / Challenger FY-3286T / Challenger FY-3286J / Challenger FY-3208GS, Crystek X5300, Leyenda 3200F3 / 1800T3, Nuocai NC-SPT2531, Forni HS1804, Icontek TW-1800J3, OraJet J18, CrystalJet 6000 series
Specifications:
- Active Print Width: 72mm
- Nozzles: 508
- Nozzle Plate: Non-Wetting
- Physical resolution: 180 dpi
- Firing Frequency: 18 kHz (and multiples)
- Drop Volume: multiple of 12pl (up to 7 drops)
