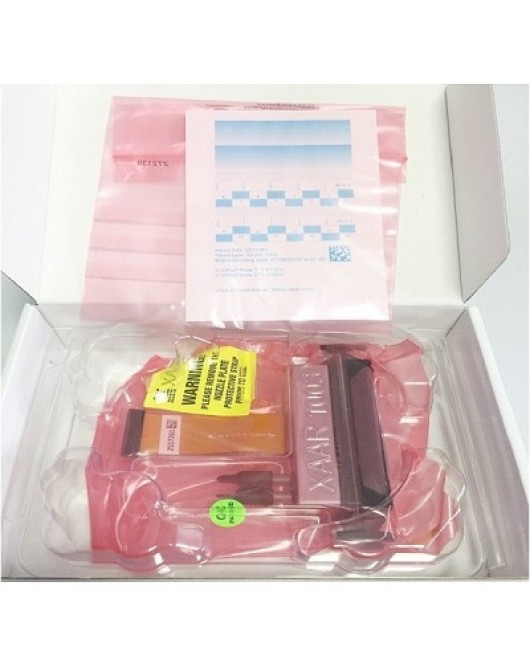

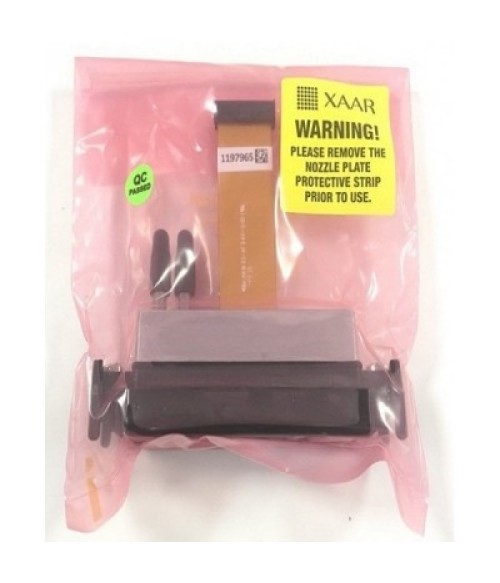

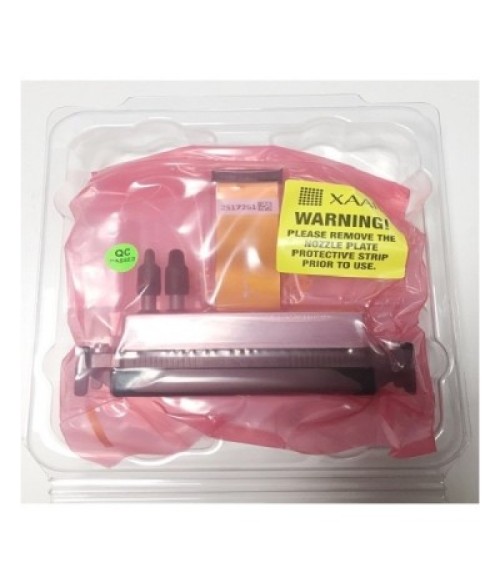

Xaar 1003-GS12C Printhead
The Xaar 1003 C with High Laydown Technology is the benchmark against which all other single-pass printheads are compared. With its all-round superior performance, this printhead builds on the market-leading Xaar 1002 and its predecessor, the original and ground-breaking Xaar 1001.
Aplication
- Floor tiles
- Special effects
- Tile cladding for building exteriors
- Wall tiles
- Glass printing
Active nozzles: 1000
Print swathe width: 70.5 mm
Number of rows: 2
Nozzle pitch (interleaved): 70.5 µm
Drop velocity*: 6 m/s
Nozzle density (nozzles per inch): 360 npi
Printhead weight (dry): 144 g
Ink type : Oil
Drop volume* (at 8 levels) : 12 to 84 pL
Number of grey levels* : 8
Typical firing frequency*: 6 to 12 kHz
Dimensions (WxDxH): 125x30x60 mm
Xaar 1003-GS12C Printhead
- Product Code: XA21210
- Brand: XAAR
- Product Code: XA21210
- Availability: In Stock
$650.00
