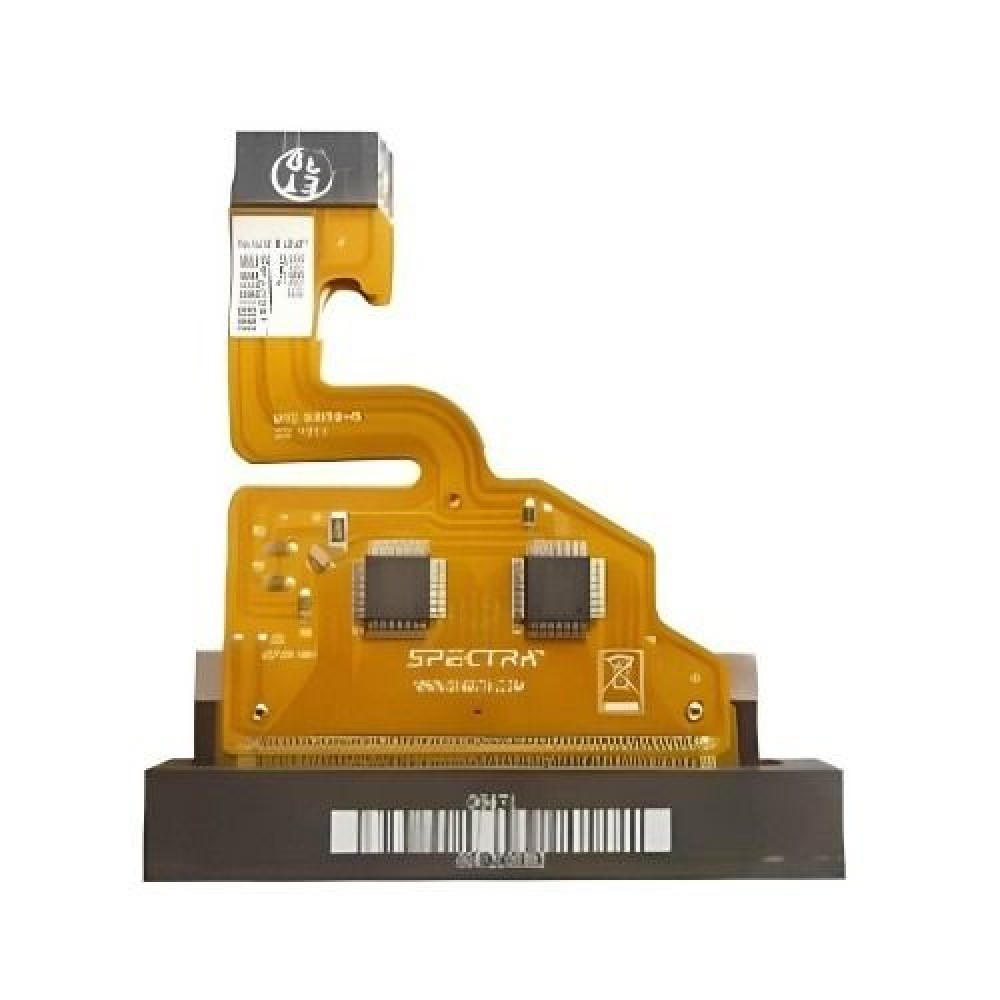

Spectra Galaxy JA 256 / 80 AAA Printhead
The Spectra Galaxy JA 256 / 80 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 450 dpi. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 nozzles. The nozzles are arranged in a single line, at a native 0.010 inch distance between nozzles.
To be used with: Agfa :Anapurna XL2 (only for white ink) / Kornit Breeze 921, Dilli Neo Venus UVV-2506GW (only for white ink)
Remarks: Original
Specifications
Model | PRH-SPE-013 |
| Technology | Piezo Electric |
| Max. Resolution | 450 dpi |
| Cal. Droplet Size | 80 pico litre |
| Adj. Range for Droplet Size | 75-85 pico litre |
| Tot. Amount of Nozzles | 256 |
| Nozzle Spacing | 254 microns |
| Nozzle Diameter | 52 microns |
| Firing Frequency | 20 kHz |
| Operating Temperature | up to 90°C |
| Ink Compatibility | Solvent, water-based and UV Inks |
Spectra Galaxy JA 256 / 80 AAA Printhead
- Product Code: SP20007
- Brand: SPECTRA
- Product Code: SP20007
- Availability: In Stock
USD 980.00
