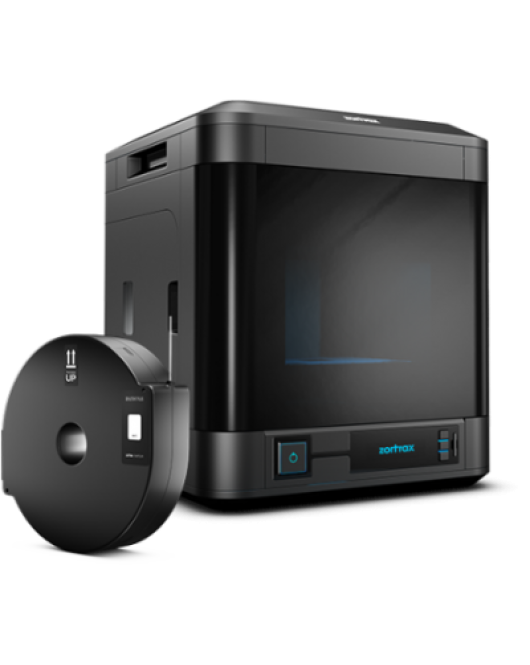

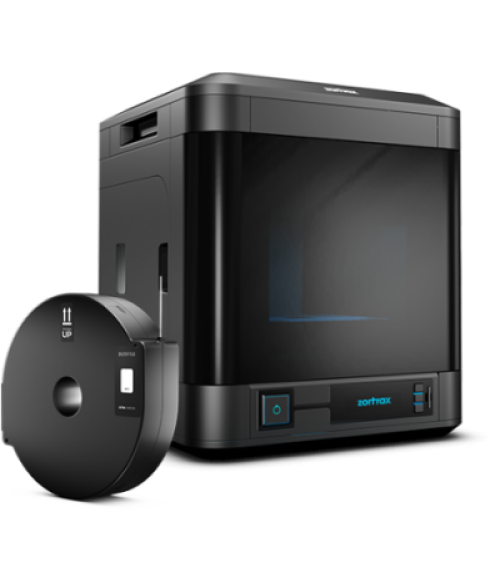

Zortrax Inventure 3D Printer
Professional desktop 3D printer based on the LPD Plus technology. Zortrax Inventure provides high quality 3D prints thanks to the Dissolvable Support System and Print Control option. As the part of the Zortrax Ecosystem it guarantees dimensional accuracy and smooth, defect-free models.
Printing
Technology
LPD
Build volume
140x140x140 mm
5.5 x 5.5 x 5.5 in
5.5 x 5.5 x 5.5 in
Resolution
90-400 microns
Material container
Cartridge
Wall thickness
Minimal:400 microns
Optimal: 800 microns
Optimal: 800 microns
Resolution of single printable point
400 microns
Material diameter
1.75 mm (00.69 in)
Nozzle diameter
0.4 mm (0.0.15 in)
Minimum single positioning
1.5 microns
Positioning precision (X/Y)
1.5 microns
Z-axis single step
1.25 microns
Temperature
Extruder maximum temparature
380° C (716° F)
Heated platform
Yes
Chamber maximum temperature
90° C
Ambient operation temparature
15°-35° C (60°-95° F)
Storage temperature
0°-35° C (32°-95° F)
Software
Software bundle
Z-SUITE
File types
.stl .obj .dxf
Supports
Mac OS X / Windows XP and newer versions
Electrical
AC Input
110/240V ~ 2 A 50/60 Hz
Power requirements
24 V DC @ 11 A
Power consumption
160W
3D Printer
Support
Dissolvable - printed from a differnet material than the model
Chip with information about material (type, color, consumption)
Yes
Extruder
Single with double nozzle
Connectivity
SD Card (included)
Available materials
Z-ULTRAT Plus,
Z-SUPPORT
Z-SUPPORT
Zortrax Z-SUITE
A simple and intuitive interface. Just a few clicks to convert your design to a 3D printed model.
Zortrax Inventure 3D Printer
- Product Code: ZO11003
- Brand: ZORTAX
- Product Code: ZO11003
- Availability: In Stock
$1,945.00
Zortrax Inventure 3D Printer
Professional desktop 3D printer based on the LPD Plus technology. Zortrax Inventure provides high quality 3D prints thanks to the Dissolvable Support System and Print Control option. As the part of the Zortrax Ecosystem it guarantees dimensional accuracy and smooth, defect-free models.
Printing
Technology
LPD
Build volume
140x140x140 mm
5.5 x 5.5 x 5.5 in
5.5 x 5.5 x 5.5 in
Resolution
90-400 microns
Material container
Cartridge
Wall thickness
Minimal:400 microns
Optimal: 800 microns
Optimal: 800 microns
Resolution of single printable point
400 microns
Material diameter
1.75 mm (00.69 in)
Nozzle diameter
0.4 mm (0.0.15 in)
Minimum single positioning
1.5 microns
Positioning precision (X/Y)
1.5 microns
Z-axis single step
1.25 microns
Temperature
Extruder maximum temparature
380° C (716° F)
Heated platform
Yes
Chamber maximum temperature
90° C
Ambient operation temparature
15°-35° C (60°-95° F)
Storage temperature
0°-35° C (32°-95° F)
Software
Software bundle
Z-SUITE
File types
.stl .obj .dxf
Supports
Mac OS X / Windows XP and newer versions
Electrical
AC Input
110/240V ~ 2 A 50/60 Hz
Power requirements
24 V DC @ 11 A
Power consumption
160W
3D Printer
Support
Dissolvable - printed from a differnet material than the model
Chip with information about material (type, color, consumption)
Yes
Extruder
Single with double nozzle
Connectivity
SD Card (included)
Available materials
Z-ULTRAT Plus,
Z-SUPPORT
Z-SUPPORT
Zortrax Z-SUITE
A simple and intuitive interface. Just a few clicks to convert your design to a 3D printed model.
