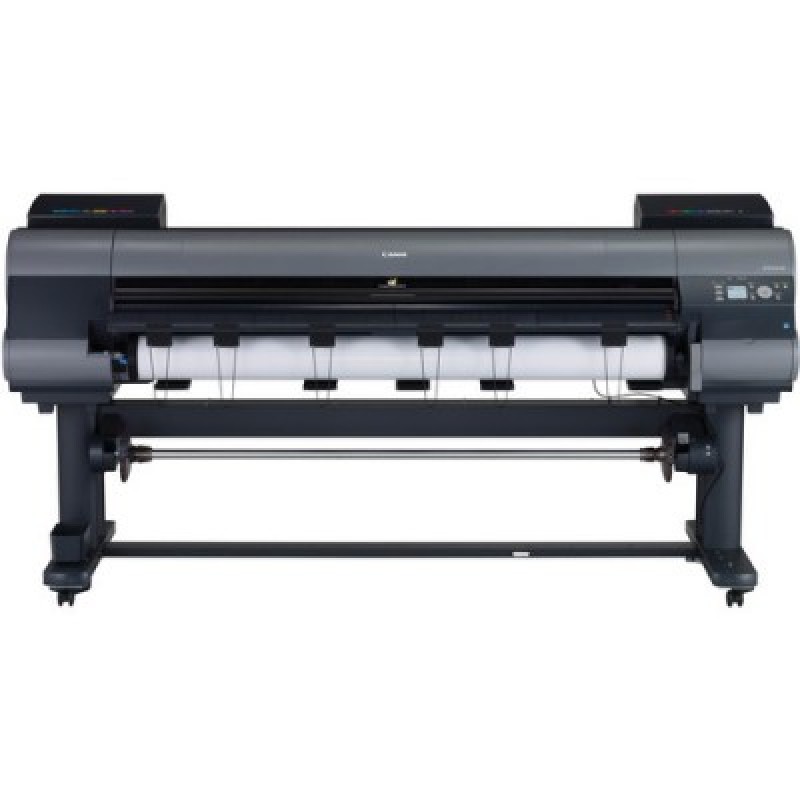

Canon image PROGRAF iPF9400 Large Format Inkjet Printer

Product Description



PRODUCT HIGHLIGHTS

• 2400 x 1200 dpi
• Media up to 31.4 mil Thick
• Borderless, Roll Printing up to 60" Wide
• Ethernet
• 640 MB Internal Memory
• Embedded 250 GB Hard Drive
• Replace Ink Cartridges During Printing
• Photoshop, DPP, MS Office Print Plug-ins



Printing Method
Printing Technology	Inkjet printer with non-firing nozzle detection and compensation
Maximum Resolution	2400 x 1200 dpi
Minimum Ink Droplet Size	4.0 pl
Ink Type	LUCIA EX Ink (Pigment based)
Ink Palette	Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Red, Green, Blue, Gray, Photo Gray
Ink Cartridge Configuration	12 individual cartridges
Ink Cartridge Capacity	11.16 or 23.67 fl oz (330 or 700 ml) per color
Compatible Ink Cartridges	PFI-306 MBK Matte Black PFI-306 BK Black PFI-306 C Cyan PFI-306 M Magenta PFI-306 Y Yellow PFI-306 PC Photo Cyan PFI-306 PM Photo Magenta PFI-306 R Red PFI-306 G Green PFI-306 B Blue PFI-306 GY Gray PFI-306 PGY Photo Gray PFI-706 MBK Matte Black PFI-706 BK Black PFI-706 C Cyan PFI-706 M Magenta PFI-706 Y Yellow PFI-706 PC Photo Cyan PFI-706 PM Photo Magenta PFI-706 R Red PFI-706 G Green PFI-706 B Blue PFI-706 GY Gray PFI-706 PGY Photo Gray
Number of Nozzles	2,560 nozzles per color 30,720 nozzles total
Nozzle Pitch	1200 dpi



Paper Handling
Paper-Feed Method	Roll Feed: 1 Roll, front output Sheet Feed: 1 sheet, manual feed, front output
Paper Types	Plain, Coated, Photo, Proofing, Art, Sign/CAD
Paper Sizes	US: Letter, Legal, Ledger, Super B, 13.0 x 22.0" (33.02 x 55.88 cm) ISO: A0, A1, A2, A2+, A3, A3+, A4, B0, B1, B2, B3, B4 JIS: B0, B1, B2, B3, B4 ANSI: C, D, E, F ARCH: A, B, C, D, E1, E2, E3 DIN: C0, C1, C2, C3, C4 US Photo 16.0 x 20.0" (40.64 x 50.8 cm) Poster: 20.0 x 30.0" (50.8 x 76.2 cm), 30.0 x 40.0" (76.2 x 40.64 cm), 42.0 x 60.0" (106.68 x 152.4 cm), 44.0 x 62.0" (111.76 x 157.48 cm), 50.0 x 70.0" (127.0 x 177.8 cm), 54.0 x 76.0" (137.16 x 193.04 cm), 60.0 x 84.0" (152.4 x 213.36 cm) Other: 8.0 x 10.0" (20.32 x 25.4 cm), 10.0 x 15.0" (25.4 x 38.1 cm), 10.0 x 12.0" (25.4 x 30.48 cm), 12.0 x 16.0" (30.48 x 40.64 cm), 14.0 x 17.0" (35.56 x 43.18 cm), 18.0 x 22.0" (45.72 x 55.88 cm), 20.0 x 24.0" (50.8 x 60.96 cm) Custom: 8.0 x 8.0 to 60.0 x 63.0" (20.32 x 20.32 to 152.4 x 160.0 cm) Roll Width: 10.0 to 60.0" (25.4 to 152.4 cm) Roll Print Length: Up to 59.1' (18.0 m)
Borderless Printing Width	10.0" (25.4 cm), 14.0" (35.56 cm), 17.0" (43.18 cm), 24.0" (60.96 cm), 36.0" (91.44 cm), 42.0" (106.68 cm), 44.0" (111.76 cm), 50.0" (127.0 cm), 60.0" (152.4 cm) JIS B2 (20.28" / 51.5 cm), JIS B0 (40.55" / 103.0 cm), ISO A1 (23.39" / 59.4 cm), ISO A0 (33.11" / 84.1 cm)
Media Weight	70 to 470 g/m2
Media Thickness	2.8 to 31.0 mil (0.07 to 0.8 mm)
Maximum Media Roll Diameter	6.0" (15.24 cm)
Core Size	2.0, 3.0" (5.08, 7.62 cm)



Connectivity
Interfaces	High-Speed USB 2.0 10 / 100 / 1000 Base-T / TX Ethernet
Network Protocols	IPX / SPX, SNMP (Canon-MIB compatible), HTTP, TCP / IP, AppleTalk
OS Compatibility	Windows: XP, Vista (32 / 64-bit) Windows 7 (32 / 64-bit) Macintosh OS X
Input Buffer	640 MB
Hard Drive Capacity	250 GB
Printer Language	GARO



Physical
Control Panel	LCD LEDs Message, Roll Media, Cut Sheet Media Buttons: Power, Menu, OK, Stop, Navigate, Back, Cut, Feed, Load, 4 directional arrows
Power Requirements	100 to 240 VAC (50 to 60 Hz)
Power Consumption	Maximum: 190.0 W Standby: ≤ 6.0 W Power Off: ≤ 0.5 W
Acoustic Noise	Operation: ≤ 68 dB(A) Standby: ≤ 35 dB(A)
Certifications	International Energy Star Program (worldwide), Law on Promoting Green Purchasing (Japan), GPN, RoHS directive, IT Eco Declaration (Europe), WEEE, U.S. presidential directives, J-MOSS (Green Mark), Chinese RoHS, ErP Lot6 (Europe)
Temperature / Humidity	Operating Temperature: 59 to 86°F (15 to 30°C) Operating Humidity: 10 to 80%
Dimensions (WxDxH)	90.5 x 30.2 x 45.0" (229.87 x 76.71 x 114.3 cm)
Weight	362.0 lb (164.2 kg) including stand



Packaging Info
Package Weight	562.0 lb
Box Dimensions (LxWxH)

98.0 x 48.5 x 40.0"
