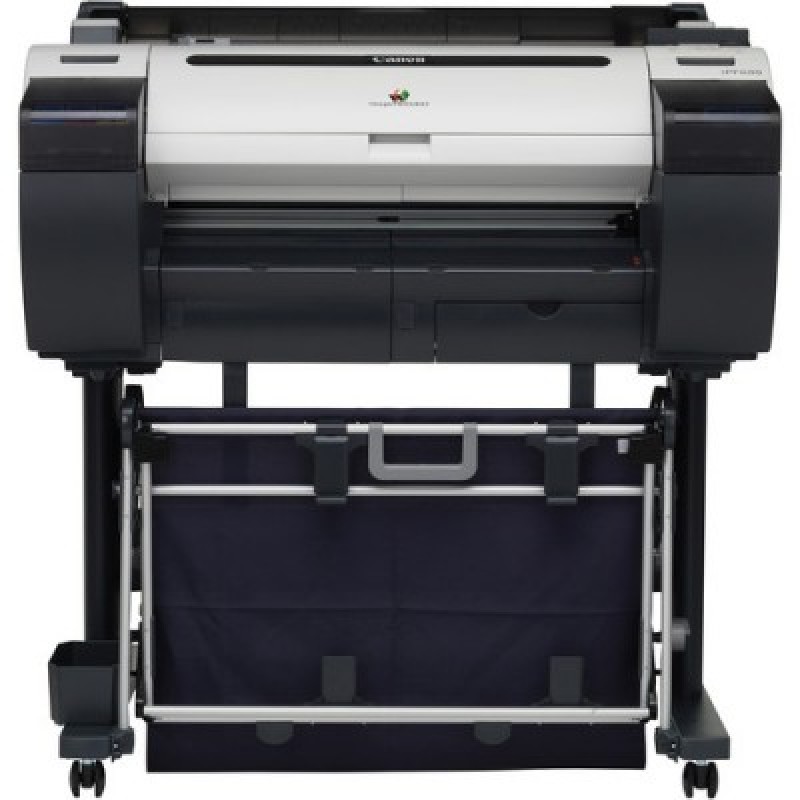

Canon imagePROGRAF iPF680 24" Large-Format Inkjet Printer
USD 2,000.00
- Brand: CANON
- Product Code: hrs9s1ymr688
- Availability: In Stock
Product Description
PRODUCT HIGHLIGHTS
- Max Resolution: 2400 x 1200 dpi
- Max Print Size: 24" x 59'
- Print Speed: 24 x 36" Drawing in 25 sec
- Five-Color Dye/Pigment Reactive Ink Set
- Sub-Ink Tank System
- Economy Print Mode
- Optimized Module for AutoCAD
- PosterArtist Lite Software
- USB 2.0 and Ethernet Connectivity
Printing Method Print Technology FINE (Full-Photolithography Inkjet Nozzle Engineering) Print Resolution 2400 x 1200 dpi Print Speed Arch D 24 x 36" (61.0 x 91.4 cm): 25 seconds in Economy Mode Print Head PF-04 Ink Droplet Size 4 pl Line Accuracy ±0.1% or less Minimum Line Weight 0.79 mil (0.02 mm) Number of Nozzles Matte Black: 5,120 nozzles
Other Colors: 2,560 nozzles per color Nozzle Pitch 1200 dpi x two rows Printhead Swath 1.07" (27.2 mm) Ink Types Dye: Cyan (C), Magenta (M), Yellow (Y), Black (K)
Pigment: Matte Black (MBK) Compatible Ink Tanks PFI-107 (130 ml): C, M, Y, BK, MBK
PFI-207 (300 ml): C, M, Y, BK, MBK Ink Tank Capacity Starter: 130 ml (MBK), 90 ml (C, M, Y, BK)
Replacement: 130 ml (PFI-107) or 300 ml (PFI-207) Ink Supply Method Tubing system with sub-ink-tanks for continuous ink supply Nozzle Recovery System Non-firing nozzle detection and compensation
Paper Handling Roll Feed: One roll, top-loading, front output
Cut Sheet: One sheet, top-loading front output Media Width Roll Feed: 10-24" (254-610 mm)
Cut Sheet: 8-24" (203-610 mm) Maximum Print Length Roll Feed: 59' (18 m)
Cut Sheet: 63" (1.6 m) Margins Roll Feed, All Sides: 0.12" (3 mm) or 0" (0 mm) for borderless
Cut Sheet, Leading, Sides (Left and Right): 0.12" (3 mm)
Cut Sheet, Trailing: 0.91" (23 mm) Borderless Printing Width Roll Media: 10" (25.4 cm), B4, A3, 14" (35.6 cm), A2, 17" (43.2 cm), B2, A1, 24" (61.0 cm) Media Cutter Durable dual-blade rotary cutter Media Thickness 2.8-31.4 mil (0.07-0.80 mm) Core Sizes 2" (5.1 cm) and 3" (7.6 cm) Maximum Media Roll Diameter 5.9" (150 mm) Output Flat stacker, basket Output Capacity 20 sheets with stackable configuration
Interfaces USB 2.0
10/100/1000Base-T/TX Controller L-COA Processor Memory 256 MB Internal Hard Drive None Mail Server None Compatible Operating Systems Windows XP (32-bit), Server 2003 (32/64-bit), Server 2008 (32/64-bit), Server 2012 (64-bit), Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit)
Macintosh OS X 10.6.8-10.9.x Print Languages GARO (Canon proprietary), HP-GL/2, HP RTL Protocols TCP/IP (IPv4/IPv6), IPX/SPX, AppleTalk, SNMP (Canon MIB supported), HTTP
Acoustic Noise Operation: 47 dB
Standby: 35 dB or less
Acoustic Power: 64 dB Power Requirements 100-240 VAC, 50-60 Hz Power Consumption Maximum: 140 W or less
Standby: 5 W or less
Power Off: 1 W or less (Executive Order Compliant) Certifications Electrical Safety Regulations: TUV (USA), cTUV (USA), TUV.S mark, CB certification (others)
Electromagnetic Interface Regulations: FCC Class B (USA), IC Class B (Canada)
Environmental: ENERGY STAR (worldwide), RoHS Directive Operating Conditions Temperature: 59 to 86°F (15 to 30°C)
Humidity: 10 to 80%, non-condensing Dimensions (WxDxH) Basket Open: 42 x 39 x 35" (106.7 x 99.1 x 88.9 cm)
Basket Extended for Flatbed Stacking: 42 x 39 x 43" (106.7 x 99.1 x 109.2 cm) Weight 125 lb (56 kg) with stand
PRODUCT HIGHLIGHTS
- Max Resolution: 2400 x 1200 dpi
- Max Print Size: 24" x 59'
- Print Speed: 24 x 36" Drawing in 25 sec
- Five-Color Dye/Pigment Reactive Ink Set
- Sub-Ink Tank System
- Economy Print Mode
- Optimized Module for AutoCAD
- PosterArtist Lite Software
- USB 2.0 and Ethernet Connectivity
| Printing Method | |
|---|---|
| Print Technology | FINE (Full-Photolithography Inkjet Nozzle Engineering) |
| Print Resolution | 2400 x 1200 dpi |
| Print Speed | Arch D 24 x 36" (61.0 x 91.4 cm): 25 seconds in Economy Mode |
| Print Head | PF-04 |
| Ink Droplet Size | 4 pl |
| Line Accuracy | ±0.1% or less |
| Minimum Line Weight | 0.79 mil (0.02 mm) |
| Number of Nozzles | Matte Black: 5,120 nozzles Other Colors: 2,560 nozzles per color |
| Nozzle Pitch | 1200 dpi x two rows |
| Printhead Swath | 1.07" (27.2 mm) |
| Ink Types | Dye: Cyan (C), Magenta (M), Yellow (Y), Black (K) Pigment: Matte Black (MBK) |
| Compatible Ink Tanks | PFI-107 (130 ml): C, M, Y, BK, MBK PFI-207 (300 ml): C, M, Y, BK, MBK |
| Ink Tank Capacity | Starter: 130 ml (MBK), 90 ml (C, M, Y, BK) Replacement: 130 ml (PFI-107) or 300 ml (PFI-207) |
| Ink Supply Method | Tubing system with sub-ink-tanks for continuous ink supply |
| Nozzle Recovery System | Non-firing nozzle detection and compensation |
| |
|---|---|
| Paper Handling | Roll Feed: One roll, top-loading, front output Cut Sheet: One sheet, top-loading front output |
| Media Width | Roll Feed: 10-24" (254-610 mm) Cut Sheet: 8-24" (203-610 mm) |
| Maximum Print Length | Roll Feed: 59' (18 m) Cut Sheet: 63" (1.6 m) |
| Margins | Roll Feed, All Sides: 0.12" (3 mm) or 0" (0 mm) for borderless Cut Sheet, Leading, Sides (Left and Right): 0.12" (3 mm) Cut Sheet, Trailing: 0.91" (23 mm) |
| Borderless Printing Width | Roll Media: 10" (25.4 cm), B4, A3, 14" (35.6 cm), A2, 17" (43.2 cm), B2, A1, 24" (61.0 cm) |
| Media Cutter | Durable dual-blade rotary cutter |
| Media Thickness | 2.8-31.4 mil (0.07-0.80 mm) |
| Core Sizes | 2" (5.1 cm) and 3" (7.6 cm) |
| Maximum Media Roll Diameter | 5.9" (150 mm) |
| Output | Flat stacker, basket |
| Output Capacity | 20 sheets with stackable configuration |
| |
|---|---|
| Interfaces | USB 2.0 10/100/1000Base-T/TX |
| Controller | L-COA Processor |
| Memory | 256 MB |
| Internal Hard Drive | None |
| Mail Server | None |
| Compatible Operating Systems | Windows XP (32-bit), Server 2003 (32/64-bit), Server 2008 (32/64-bit), Server 2012 (64-bit), Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit) Macintosh OS X 10.6.8-10.9.x |
| Print Languages | GARO (Canon proprietary), HP-GL/2, HP RTL |
| Protocols | TCP/IP (IPv4/IPv6), IPX/SPX, AppleTalk, SNMP (Canon MIB supported), HTTP |
| |
|---|---|
| Acoustic Noise | Operation: 47 dB Standby: 35 dB or less Acoustic Power: 64 dB |
| Power Requirements | 100-240 VAC, 50-60 Hz |
| Power Consumption | Maximum: 140 W or less Standby: 5 W or less Power Off: 1 W or less (Executive Order Compliant) |
| Certifications | Electrical Safety Regulations: TUV (USA), cTUV (USA), TUV.S mark, CB certification (others) Electromagnetic Interface Regulations: FCC Class B (USA), IC Class B (Canada) Environmental: ENERGY STAR (worldwide), RoHS Directive |
| Operating Conditions | Temperature: 59 to 86°F (15 to 30°C) Humidity: 10 to 80%, non-condensing |
| Dimensions (WxDxH) | Basket Open: 42 x 39 x 35" (106.7 x 99.1 x 88.9 cm) Basket Extended for Flatbed Stacking: 42 x 39 x 43" (106.7 x 99.1 x 109.2 cm) |
| Weight | 125 lb (56 kg) with stand |
