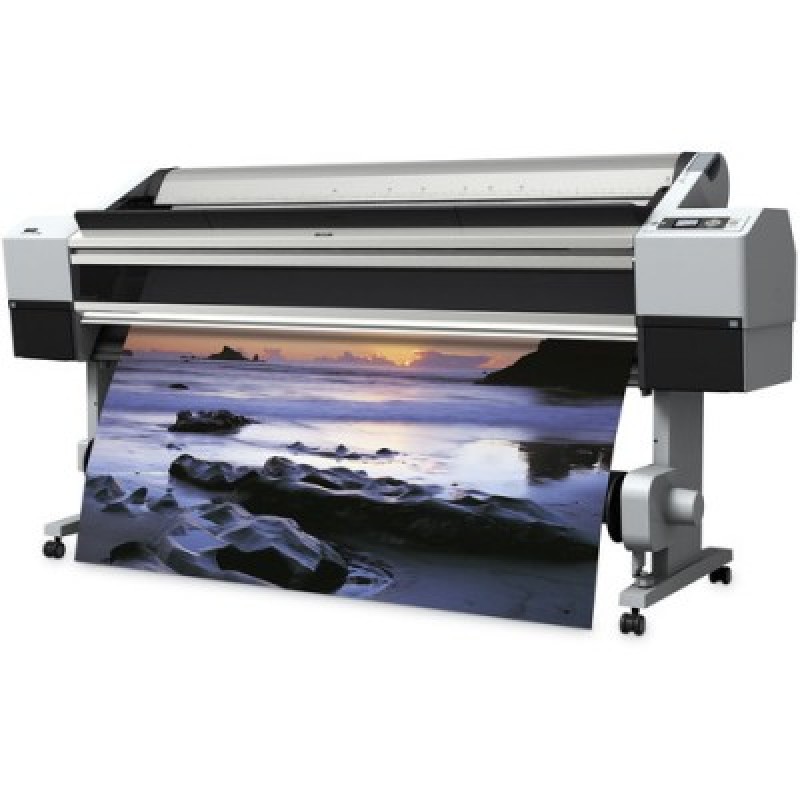

Epson Stylus Pro 11880 64 inch Large-Format Inkjet Printer

PRODUCT HIGHLIGHTS

Max Resolution: 2880 x 1440 dpi

Max Printable Width: 63.75"

Print Speed: 16 x 20" from 50 sec

MicroPiezo TFP Print Head Technology

AccuPhoto HD Image Technology

9 UltraChrome K3 Inks with Vivid Magenta

Auto-Switching Black Ink Technology

Advanced Media Handling & Cutting System

Printer Activity Lighting System

USB 2.0 and Ethernet Connectivity

Printing Method

Printing Technology 9-channel, drop-on-demand Advanced MicroPiezo TFP print head with ink repelling coating technology and Auto Head Alignment and Cleaning technology

Maximum Resolution 2880 x 1440 dpi

Minimum Ink Droplet Size 3.5 picoliters with Variable Droplet Technology

Ink Type Epson UltraChrome K3 with Vivid Magenta pigment-based ink

Ink Palette C, LC, VM, VLM, Y, LK, LLK, PK/MK

Ink Cartridge Configuration Uses 9 individual ink cartridges

Performance

Print Speed 16" x 20" print: 0:50 to 7:39

20"x 30" print: 1:24 to 13:24

40"x 60" print: 4:08 to 42:10

time listed in Min:Sec

Input Buffer Not Specified by Manufacturer

Printer Duty Cycle Not Specified by Manufacturer

 Cutter life: 2,000 cuts (coated media)

Print Archival Life Up to 200 Years (depending on print media)

Maximum Paper Width 64"

Maximum Printable Area 63.75" wide with length limited by application, OS, and Driver/RIP used

Paper Sizes Roll Media with width of 10", 13", 16", 17", 24", 36", 44", 50", 54", 60" & 64"

Cut Sheet from 8.5" x 11" (letter) to 64" wide (any length)

Borderless Photo Sizes Borderless printing with roll media sizes of 10", 13", 16", 17", 24", 36", 44", 50" & 54"

Top and bottom edges can be automatically cut to any length

Paper Types Inkjet media approved for use with pigment based inks

Maximum Paper Thickness 12.5 mil (roll, tray and top feed slot)

1.5 mm posterboard (rear manual feed slot)

Paper Capacity Cut Sheets

Front feed slots: 1 Sheet

Roll Media

Limited by total roll diameter of 4" with 2" core or 6" with 3" core)

Special Media Support Works with non-paper based inkjet media

 Connectivity

Computer Interface USB 2.0 (Hi-Speed) 1.1 compatible

Ethernet (10/100/1000 Base-T) RJ-45 connector

Compatible Memory Cards None

Direct Print Capable No

Network Capable Yes (via Ethernet)

PostScript Support Optional PANTONE licensed and SWOP certified PostScript Language Level 3 Compatible RIP by ColorBurst

Supported by most leading third-party RIPs and workflows

System & Software Requirements Windows System

Pentium4 3.0 GHz or better processor

Windows XP, XP Pro x64, Vista, Vista x64

1GB RAM (2GB recommended)

30GB free hard drive space

CD-ROM or DVD Drive (4x speed)

USB Port and Shielded USB "AB" Cable (10' max. length)

or

Ethernet-equipped PC and Cat 6 cable

Macintosh System

PowerPC G5, Intel or higher processor

Macintosh OS X (10.4.9 or higher, 10.5 or higher)

1GB RAM (2GB recommended)

30GB free hard drive space

CD-ROM or DVD Drive (4x speed)

USB 2.0 Port and Shielded USB "AB" Cable (10' max. length)

or

Ethernet-equipped PC and Cat. 6 cable

Physical

Status Display 2.5" Monochrome Alphanumeric LCD & Indicator LEDs with Printer Activity Lighting System

Image Preview Display No

Front Panel Controls Power, Pause/Reset, Left arrow/Paper source, Paper feed up, Paper feed down, Enter/Bar Code, Menu/Clean, Take-up Reel Controls

Power Requirements 110-120 V AC; 50-60 Hz

Dimensions (WxHxD) 92 x 46 x 28" (2337 x 1169 x 712 mm) with stand

Weight 384 lb (175 kg) with stand

Packaging Info

Package Weight 395.2 lb

Box Dimensions (LxWxH) 99.0 x 41.0 x 31.0"
