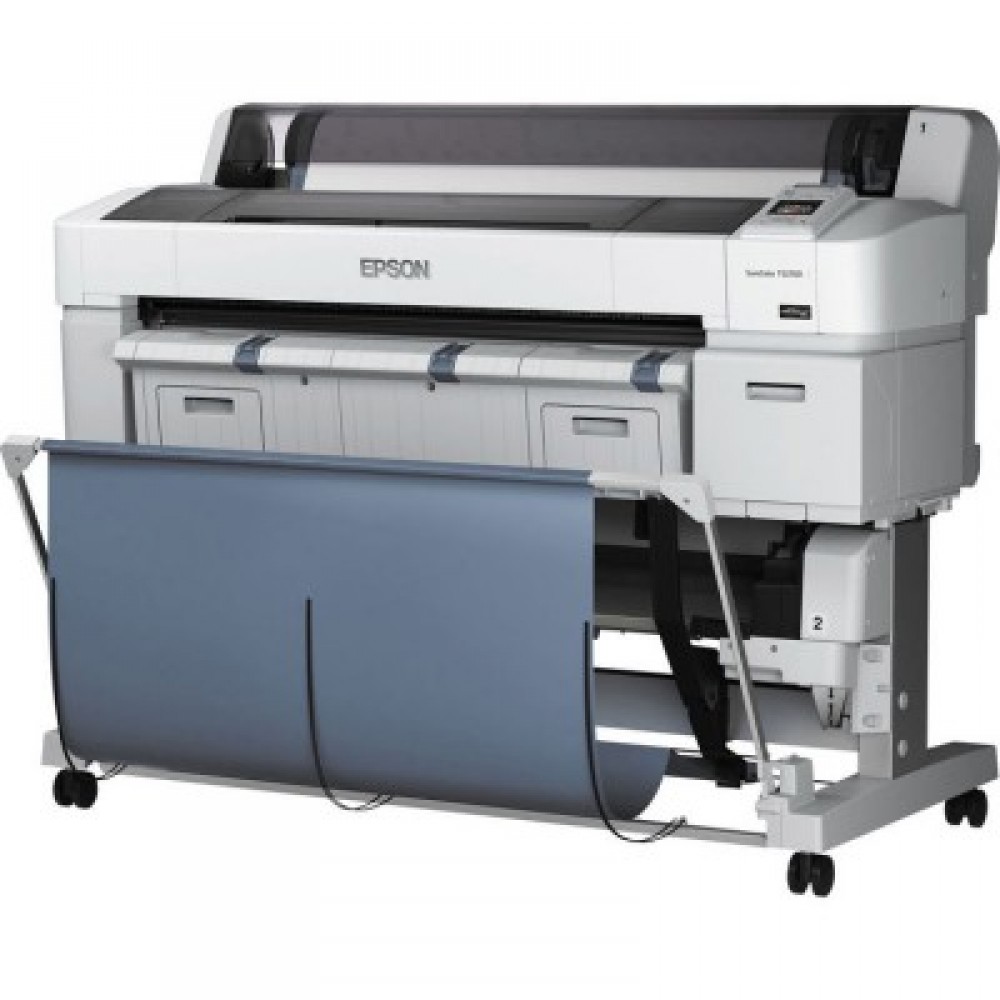

Epson SureColor T5270D 36 inch Dual Roll Large-Format Inkjet Printer
USD 5,000.00
- Brand: EPSON
- Product Code: hrs8v0klsx578
- Availability: In Stock
PRODUCT HIGHLIGHTS
- Max Resolution: 2880 x 1440 dpi
- Max Print Width: 36"
- Print Speed: 22 x 34" Plot in 25 Seconds
- Handles Media up to 59 mil Thick
- Holds Two Rolls with 2" or 3" Cores
- Five-Color UltraChrome Pigment Ink Set
- Control Panel with Full Color LCD
- Stand with Horizontal Catch Basket
- Optional Multifunction Scanning Module
- USB 2.0 and Ethernet Connectivity
| Printing Method | |
|---|---|
| Printing Technology | PrecisionCore TFP Printhead and Micro-Electro-Mechanical Systems with Variable Size Ink Droplet Technology |
| Maximum Resolution | 2880 x 1440 dpi |
| Print Speed | Speed: 740 ft² (61.3 m²) per hour Production: 310 ft² per hour High Quality: 115 ft² per hour 25 seconds for D-size 22 x 34" (55.9 x 86.4 cm) plot |
| Minimum Ink Droplet Size | 3.5 pl |
| Ink Type | UltraChrome XD pigment-based ink |
| Ink Cartridge Configuration | Cyan, Yellow, Magenta, Matte Black, Photo Black |
| Compatible Ink Cartridges | T692100 Photo Black Ink Cartridge (110 ml) T692200 Cyan Ink Cartridge (110 ml) T692300 Magenta Black Ink Cartridge (110 ml) T692400 Yellow Black Ink Cartridge (110 ml) T692500 Matte Black Ink Cartridge (110 ml) T693100 Photo Black Ink Cartridge (350 ml) T693200 Cyan Ink Cartridge (350 ml) T693300 Magenta Black Ink Cartridge (350 ml) T693400 Yellow Black Ink Cartridge (350 ml) T693500 Matte Black Ink Cartridge (350 ml) T694100 Photo Black Ink Cartridge (700 ml) T694200 Cyan Ink Cartridge (700 ml) T694300 Magenta Black Ink Cartridge (700 ml) T694400 Yellow Black Ink Cartridge (700 ml) T694500 Matte Black Ink Cartridge (700 ml) |
| Number of Nozzles | Per Color: 720 Total: 3600 |
| Line Accuracy | ±0.1% |
| Minimum Line Width | 0.7 mil (0.018 mm) |
| |
|---|---|
| Paper Types | Roll Cut-sheet |
| Paper Sizes | 2 x Roll: 10.0-36.0" (25.4-91.4 cm) wide on 2" (5.1 cm) or 3" (7.6 cm) core Cut-sheet: 8.3-36" (21.0-91.4 cm) wide |
| Borderless Printing | 10" (25.4 cm), 11.8" (30.0 cm), 13" (33.0 cm), 16" (40.6 cm), 17" (43.2 cm), 20.3" (51.6 cm), 23" (58.4 cm), 24" (61.0 cm), 29" (73.7 cm), 33" (83.8 cm), 36" (91.4 cm) |
| Media Thickness | 3.1-59.1 mil (0.08-1.50 mm) |
| |
|---|---|
| Interfaces | USB 2.0 10/100/1000 Base-T Ethernet |
| Print Languages | Epson Precision XD and Native HPGL, HPGL/2, HP-RTL |
| Network Protocol Support | TCP/IP IPv4 and IPv6, Apple Bonjour, FTP, WSD, RAW IP, LPD, IPSec, SSL/TLS, and IEEE802.1X authentication |
| Compatible Operating Systems | Windows 8, 7, Server 2012, Server 2008 Mac OS X 10.9, 10.8, 10.7 |
| |
|---|---|
| Control Panel | Full color LCD with buttons |
| Power Requirements | 100-240 VAC, 50-60 Hz |
| Power Consumption | Operating: 61 W Sleep: <3 W Off: <0.5 W |
| Certifications | UL (MET), FCC (Class A), CSA, TCSA, CE, EMC, and ENERGY STAR 2.0 |
| Operating Conditions | Temperature: 50 to 95°F (10 to 35°C) Humidity: 20 to 80%, non-condensing |
| Dimensions (WxDxH) | 56 x 30 x 45" (142 x 76 x 114 cm) with stand |
| Weight | 261 lb (118 kg) with stand |
| |
|---|---|
| Package Weight | 400.0 lb |
| Box Dimensions (LxWxH) | 71.5 x 62.0 x 31.0" |
