Graphtec FC2250-120MG
USD 14,000.00
- Brand: GRAPHTEC
- Product Code: hrs9s1ymr650
- Availability: In Stock
Product Description

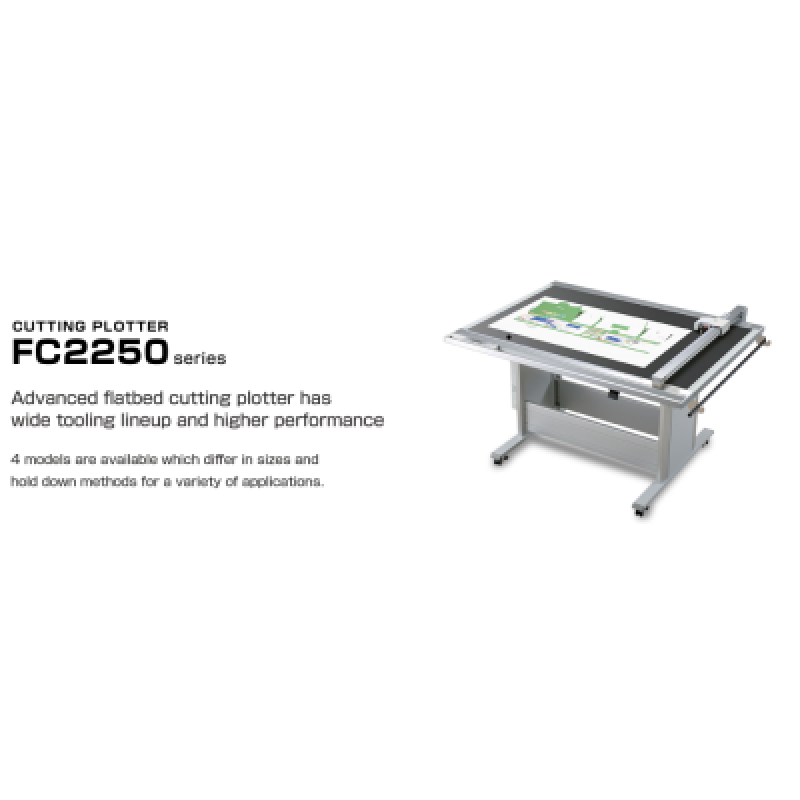

Suitable for cutting a wide range of material with the maximum cutting force 9.8N (1kgf) .
The FC2250 series is available with different table size and media hold down methods depending on the application requirements. A wide range of materials can be cut with great precision, including PET film for electronic design, chipboard, magnetic sheet or roll, matte board, gasket, marking film, sandblast rubber, high-intensity reflective film, and more!
The FC2250 Large Format flatbed cutting plotter is available in 3 table sizes: 24″x36″, 47″x36″ and 68.5″x36″, with optional tool head configurations and material hold-down systems. Dual Head Design features 500 grams and 1000 grams maximum down force for more efficient marking and cutting workflows.
Features
- Dual Head Design: 500/1000 grams Cutting Force
- 2 Media Hold down methods available: Electrostatic or Vacuum
- Operate in Horizontal or Inclined Model (Vacuum table-horizontal only)
- D-Cut Software imports DXF Datax
- Cutting Master Plug-in for Adobe® Illustrator
- 0.118″ (3mm) Blade for cutting thicker material up to E Flute
- New Optional Creasing Tool for Corrugated Media
Employed in These Industries
- Garment Pattern Cutting & Marking
- Shoe Pattern Cutting & Marking
- Package Design Prototyping
- Monument & Stone Sandblast Mask
- Industrial Films for Electronics
- Reflective Highway and Road Signs
- Offset Printing Blanket cutting
- Architectural Model Building
The FC2250 Series Cutting Plotters Handle a Wide Range of Media
- Apparel patterns
- Compressed foam sheets
- Corrugated cardboards
- Packaging samples
- Containers and road signs
- Sandblast rubber templates
- Stencils, gaskets
- Packaging short run
The FC2250 Comes in Three Table Sizes
- FC2250-60 24″ X 36″
- FC2250-120 36″ X 47.2″
- FC2250-180 36″ X 68.5″
The FC2250 series is available with different table size and media hold down methods depending on the application requirements. A wide range of materials can be cut with great precision, including PET film for electronic design, chipboard, magnetic sheet or roll, matte board, gasket, marking film, sandblast rubber, high-intensity reflective film, and more!
The FC2250 Large Format flatbed cutting plotter is available in 3 table sizes: 24″x36″, 47″x36″ and 68.5″x36″, with optional tool head configurations and material hold-down systems. Dual Head Design features 500 grams and 1000 grams maximum down force for more efficient marking and cutting workflows.
Features
- Dual Head Design: 500/1000 grams Cutting Force
- 2 Media Hold down methods available: Electrostatic or Vacuum
- Operate in Horizontal or Inclined Model (Vacuum table-horizontal only)
- D-Cut Software imports DXF Datax
- Cutting Master Plug-in for Adobe® Illustrator
- 0.118″ (3mm) Blade for cutting thicker material up to E Flute
- New Optional Creasing Tool for Corrugated Media
Employed in These Industries
- Garment Pattern Cutting & Marking
- Shoe Pattern Cutting & Marking
- Package Design Prototyping
- Monument & Stone Sandblast Mask
- Industrial Films for Electronics
- Reflective Highway and Road Signs
- Offset Printing Blanket cutting
- Architectural Model Building
The FC2250 Series Cutting Plotters Handle a Wide Range of Media
- Apparel patterns
- Compressed foam sheets
- Corrugated cardboards
- Packaging samples
- Containers and road signs
- Sandblast rubber templates
- Stencils, gaskets
- Packaging short run
The FC2250 Comes in Three Table Sizes
- FC2250-60 24″ X 36″
- FC2250-120 36″ X 47.2″
- FC2250-180 36″ X 68.5″
Specfications
Model name FC2250-60VC FC2250-120VC FC2250-120MG FC2250-180VC Configuration Digital servo system, Flatbed Media hold-down method Vacuum suction *1 Magnetic Vacuum suction *1 Effective cutting area 610 x 920 mm
(24.0 x 36.0 inch) 1200 x 920 mm
(47.2 x 36.0 inch) 1740 x 920 mm
(68.5 x 36.0 inch) Mountable media 950 mm (37.4 inch)(Y-axis direction) Media type 6Marking film (vinyl, fluorescent, and reflective)
Stiff paper/card (for stencils, etc.)up to 1.0 mm thick *2
Polystyrene foam sheets *3
Sandblast rubber sheets up to 1.0 mm thick *3
Microflute board (F/G grades)
Clear sheets for plastic boxes
High-intensity reflective film *4 Maximum cutting speed 400 mm/s (16 inch/s) (1 to 40 cm/second in 40 steps) Cutting pressure Tool 1: Max. 4.9N (500 gf), in 40 steps
Tool 2: Max. 9.8N (1 kgf), in 40 steps Minimum character size approx. 10 mm square (varies with the character font and media) Mechanical resolution 0.0025 mm (2.5μm) Programmable resolution GP-GL mode: 0.1/0.05/0.025/0.01 mm
HP-GL™ *5 : 0.025 mm Distance accuracy Max. 0.1% of the distance moved or 0.1 mm, whichever is lager *6 Perpendicularity Max. 0.5 mm / 900 mm Repeatability Max 0.1 mm *6 Standard interfaces RS-232C, USB2.0 (Full speed) Buffer memory 2 Mbyte Command sets GP-GL and HP-GL™ *5 emulation (selected by menu) Number of tools 2 tools Cutter blade, pen,
and tool types Cutter blade: supersteel
Pens: Water-based fiber-tip pen, oil-based ballpoint pen
Creasing/scoring tool Others ARMS (Advanced Registration Mark Sensing System), Reverse-side cutting and creasing with ARMS, Copy function, Creasing function, Repeatedly cut function Power supply 100 to 240 VAC, 50/60 Hz (Auto switching) Power consumption Max. 120 VA Operating environment Temperature: +10 to +35 degree C (44 to 95 degree F) , Humidity: 35 to 75% RH (non-condensing) Guaranteed accuracy environment Temperature: +16 to +32 degree C (55 to 90 degree F), Humidity: 35% to 70% RH (non-condensing) External dimensions
(W x D x H) *7 920 x 1285 x 857mm *8
(36.2 x 50.6 x 33.7 inch) 1568 x 1285 x 944 mm *8
(61.7 x 50.6 x 37.2 inch) 2068 x 1285 x 944 mm *8
(81.4 x 50.6 x 37.2 inch) The table cannot be tilted The table cannot be tilted 1568 x 987 x 1687 mm *9
(61.7 x 38.9 x 66.4 inch) The table cannot be tilted Weight approx. 58 kg *10
(128 lbs.) approx. 69 kg *10
(152 lbs.) approx. 74 kg *11
(163 lbs.) Compatible OS Windows 10 / 8.1 / 8 / 7 / Vista, Macintosh OS X10.6-10.10 *11 Certifications UL , cUL , CE making, FCC-A, EN55022-A, RoHSCling
| Model name | FC2250-60VC | FC2250-120VC | FC2250-120MG | FC2250-180VC |
|---|---|---|---|---|
| Configuration | Digital servo system, Flatbed | |||
| Media hold-down method | Vacuum suction *1 | Magnetic | Vacuum suction *1 | |
| Effective cutting area | 610 x 920 mm (24.0 x 36.0 inch) | 1200 x 920 mm (47.2 x 36.0 inch) | 1740 x 920 mm (68.5 x 36.0 inch) | |
| Mountable media | 950 mm (37.4 inch)(Y-axis direction) | |||
| Media type | 6Marking film (vinyl, fluorescent, and reflective) Stiff paper/card (for stencils, etc.)up to 1.0 mm thick *2 Polystyrene foam sheets *3 Sandblast rubber sheets up to 1.0 mm thick *3 Microflute board (F/G grades) Clear sheets for plastic boxes High-intensity reflective film *4 | |||
| Maximum cutting speed | 400 mm/s (16 inch/s) (1 to 40 cm/second in 40 steps) | |||
| Cutting pressure | Tool 1: Max. 4.9N (500 gf), in 40 steps Tool 2: Max. 9.8N (1 kgf), in 40 steps | |||
| Minimum character size | approx. 10 mm square (varies with the character font and media) | |||
| Mechanical resolution | 0.0025 mm (2.5μm) | |||
| Programmable resolution | GP-GL mode: 0.1/0.05/0.025/0.01 mm HP-GL™ *5 : 0.025 mm | |||
| Distance accuracy | Max. 0.1% of the distance moved or 0.1 mm, whichever is lager *6 | |||
| Perpendicularity | Max. 0.5 mm / 900 mm | |||
| Repeatability | Max 0.1 mm *6 | |||
| Standard interfaces | RS-232C, USB2.0 (Full speed) | |||
| Buffer memory | 2 Mbyte | |||
| Command sets | GP-GL and HP-GL™ *5 emulation (selected by menu) | |||
| Number of tools | 2 tools | |||
| Cutter blade, pen, and tool types | Cutter blade: supersteel Pens: Water-based fiber-tip pen, oil-based ballpoint pen Creasing/scoring tool | |||
| Others | ARMS (Advanced Registration Mark Sensing System), Reverse-side cutting and creasing with ARMS, Copy function, Creasing function, Repeatedly cut function | |||
| Power supply | 100 to 240 VAC, 50/60 Hz (Auto switching) | |||
| Power consumption | Max. 120 VA | |||
| Operating environment | Temperature: +10 to +35 degree C (44 to 95 degree F) , Humidity: 35 to 75% RH (non-condensing) | |||
| Guaranteed accuracy environment | Temperature: +16 to +32 degree C (55 to 90 degree F), Humidity: 35% to 70% RH (non-condensing) | |||
| External dimensions (W x D x H) *7 | 920 x 1285 x 857mm *8 (36.2 x 50.6 x 33.7 inch) | 1568 x 1285 x 944 mm *8 (61.7 x 50.6 x 37.2 inch) | 2068 x 1285 x 944 mm *8 (81.4 x 50.6 x 37.2 inch) | |
| The table cannot be tilted | The table cannot be tilted | 1568 x 987 x 1687 mm *9 (61.7 x 38.9 x 66.4 inch) | The table cannot be tilted | |
| Weight | approx. 58 kg *10 (128 lbs.) | approx. 69 kg *10 (152 lbs.) | approx. 74 kg *11 (163 lbs.) | |
| Compatible OS | Windows 10 / 8.1 / 8 / 7 / Vista, Macintosh OS X10.6-10.10 *11 | |||
| Certifications | UL , cUL , CE making, FCC-A, EN55022-A, RoHSCling | |||
