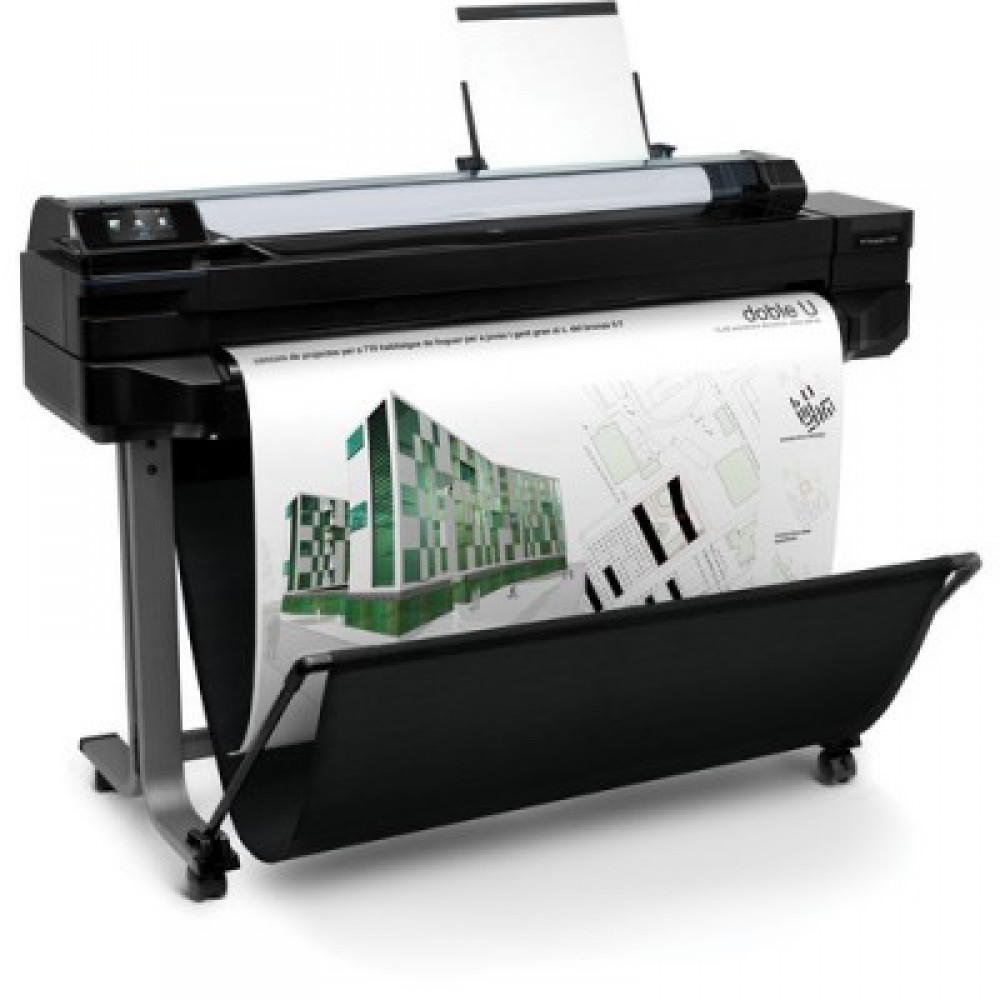

HP Designjet T520 24 inch Color Inkjet ePrinter
USD 1,200.00
- Brand: HP
- Product Code: hrs2g2wlz714
- Availability: In Stock
Product Description
PRODUCT HIGHLIGHTS
- Print Resolution: 1200dpi
- Print Speed: 275 Sq. Feet;/Hour
- Ethernet & Wi-Fi Connectivity
- Output 24.0" Wide Sheets & Rolls
- Roll Feed With Automatic Cutter
- Print On Heavy Media Up To 280gsm
- Internal Memory: 1.0GB
Printing Method Printing Technology 4-color thermal inkjet Maximum Resolution 1200 x 1200 input dpi Line Accuracy ±0.1% Ink Palette Cyan, Magenta, Yellow, Black Ink Type Dye-Based: Cyan, Magenta, Yellow
Pigment-Based: Black Ink Cartridge Configuration 4 individual cartridges Maximum Optical Density 2.10 maximum black optical density (8 L*min) Printer Language HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4 Print Speed US D - Best: 16.3 min/page
US D - Normal: 9.3 min/page
US D - Draft: 1.3 min/page
Paper-Feed Method Sheet feed, roll feed, input tray; Cutter Automatic cutter Maximum Paper Width 24.0" (60.96 cm) Paper Sizes Sheet: 8.3 x 11.0 to 24.0 x 66.0" (21.0 x 27.94 to 60.96 x 167.6 cm)
Roll Width: 11.0 to 24.0" (27.94 to 60.96 cm) Paper Types Plain: Bond, coated, heavyweight coated, recycled, plain, bright white
Technical: Natural tracing, vellum
Film: Clear, matte
Photo: Satin, gloss, semigloss, premium, polypropylene
Self-Adhesive: Adhesive, polypropylene Media Thickness Up to 11.8 mil (299.72 micron) Media Weight Roll Feed: 60 to 280 g/m2
Manual Feed: 60 to 280 g/m2
Input Tray: 60 to 220 g/m2 Maximum Roll Print Length 150.0' (46.0 m) Maximum Media Roll Diameter 3.9" (9.91 cm)
Interface Hi-Speed USB 2.0
Fast Ethernet (100Base-T)
Wi-Fi OS Compatibility Windows: Windows 7 Ultimate/Professional/Home Premium, Vista Ultimate/Business/Home Premium, XP (32/64-bit) Professional/Home, Server 2008 (32/64-bit), Server 2008 R2, Server 2003 (32/64-bit)
Mac: OS X 10.6, 10.7, 10.8
Citrix: XenApp, XenServer Internal Memory 1.0 GB
Control Panel LCD: 4.3" color touchscreen
Icons: Wireless, Home, Help, Previous/Next, Back, Cancel Power Requirements 100 to 240 V AC ±10%, 50/60 Hz, 1200 mA max Power Consumption Printing: < 35 W
Power Save: < 4.5 W
Standby: < 0.3 W Acoustic Noise Sound Power (Operating): 6.5 B(A)
Sound Power (Standby): < 3.4 B(A)
Sound Pressure (Operating): 48 dB(A)
Sound Pressure (Standby:) < 16 dB(A) Certifications Safety: CSA, EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Mexico (NYCE)
Electromagnetic: Class B requirements, including USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Certified as Class A product: Korea (KCC)
Environmental: Energy Star, WEEE, EU RoHS, REACH, EuP, FEMP Temperature / Humidity Operating Temperature: 41 to 104 °F (5 to 40 °C)
Recommended: 59 to 95 °F (15 to 35 °C)
Storage Temperature: -13 to 131 °F (-25 to 55 °C)
Operating Humidity: 20 to 80%
Storage Humidity: 0 to 95% Dimensions (WxDxH) 38.9 x 20.9 x 11.2" (98.81 x 53.09 x 28.45 cm) Weight 56.2 lb (25.49 kg)
Package Weight 107.5 lb Box Dimensions (LxWxH)
43.5 x 24.0 x 23.0"
PRODUCT HIGHLIGHTS
- Print Resolution: 1200dpi
- Print Speed: 275 Sq. Feet;/Hour
- Ethernet & Wi-Fi Connectivity
- Output 24.0" Wide Sheets & Rolls
- Roll Feed With Automatic Cutter
- Print On Heavy Media Up To 280gsm
- Internal Memory: 1.0GB
| Printing Method | |
|---|---|
| Printing Technology | 4-color thermal inkjet |
| Maximum Resolution | 1200 x 1200 input dpi |
| Line Accuracy | ±0.1% |
| Ink Palette | Cyan, Magenta, Yellow, Black |
| Ink Type | Dye-Based: Cyan, Magenta, Yellow Pigment-Based: Black |
| Ink Cartridge Configuration | 4 individual cartridges |
| Maximum Optical Density | 2.10 maximum black optical density (8 L*min) |
| Printer Language | HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4 |
| Print Speed | US D - Best: 16.3 min/page US D - Normal: 9.3 min/page US D - Draft: 1.3 min/page |
| |
|---|---|
| Paper-Feed Method | Sheet feed, roll feed, input tray; |
| Cutter | Automatic cutter |
| Maximum Paper Width | 24.0" (60.96 cm) |
| Paper Sizes | Sheet: 8.3 x 11.0 to 24.0 x 66.0" (21.0 x 27.94 to 60.96 x 167.6 cm) Roll Width: 11.0 to 24.0" (27.94 to 60.96 cm) |
| Paper Types | Plain: Bond, coated, heavyweight coated, recycled, plain, bright white Technical: Natural tracing, vellum Film: Clear, matte Photo: Satin, gloss, semigloss, premium, polypropylene Self-Adhesive: Adhesive, polypropylene |
| Media Thickness | Up to 11.8 mil (299.72 micron) |
| Media Weight | Roll Feed: 60 to 280 g/m2 Manual Feed: 60 to 280 g/m2 Input Tray: 60 to 220 g/m2 |
| Maximum Roll Print Length | 150.0' (46.0 m) |
| Maximum Media Roll Diameter | 3.9" (9.91 cm) |
| |
|---|---|
| Interface | Hi-Speed USB 2.0 Fast Ethernet (100Base-T) Wi-Fi |
| OS Compatibility | Windows: Windows 7 Ultimate/Professional/Home Premium, Vista Ultimate/Business/Home Premium, XP (32/64-bit) Professional/Home, Server 2008 (32/64-bit), Server 2008 R2, Server 2003 (32/64-bit) Mac: OS X 10.6, 10.7, 10.8 Citrix: XenApp, XenServer |
| Internal Memory | 1.0 GB |
| |
|---|---|
| Control Panel | LCD: 4.3" color touchscreen Icons: Wireless, Home, Help, Previous/Next, Back, Cancel |
| Power Requirements | 100 to 240 V AC ±10%, 50/60 Hz, 1200 mA max |
| Power Consumption | Printing: < 35 W Power Save: < 4.5 W Standby: < 0.3 W |
| Acoustic Noise | Sound Power (Operating): 6.5 B(A) Sound Power (Standby): < 3.4 B(A) Sound Pressure (Operating): 48 dB(A) Sound Pressure (Standby:) < 16 dB(A) |
| Certifications | Safety: CSA, EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Mexico (NYCE) Electromagnetic: Class B requirements, including USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Certified as Class A product: Korea (KCC) Environmental: Energy Star, WEEE, EU RoHS, REACH, EuP, FEMP |
| Temperature / Humidity | Operating Temperature: 41 to 104 °F (5 to 40 °C) Recommended: 59 to 95 °F (15 to 35 °C) Storage Temperature: -13 to 131 °F (-25 to 55 °C) Operating Humidity: 20 to 80% Storage Humidity: 0 to 95% |
| Dimensions (WxDxH) | 38.9 x 20.9 x 11.2" (98.81 x 53.09 x 28.45 cm) |
| Weight | 56.2 lb (25.49 kg) |
| |
|---|---|
| Package Weight | 107.5 lb |
| Box Dimensions (LxWxH) | |
| 43.5 x 24.0 x 23.0" |
