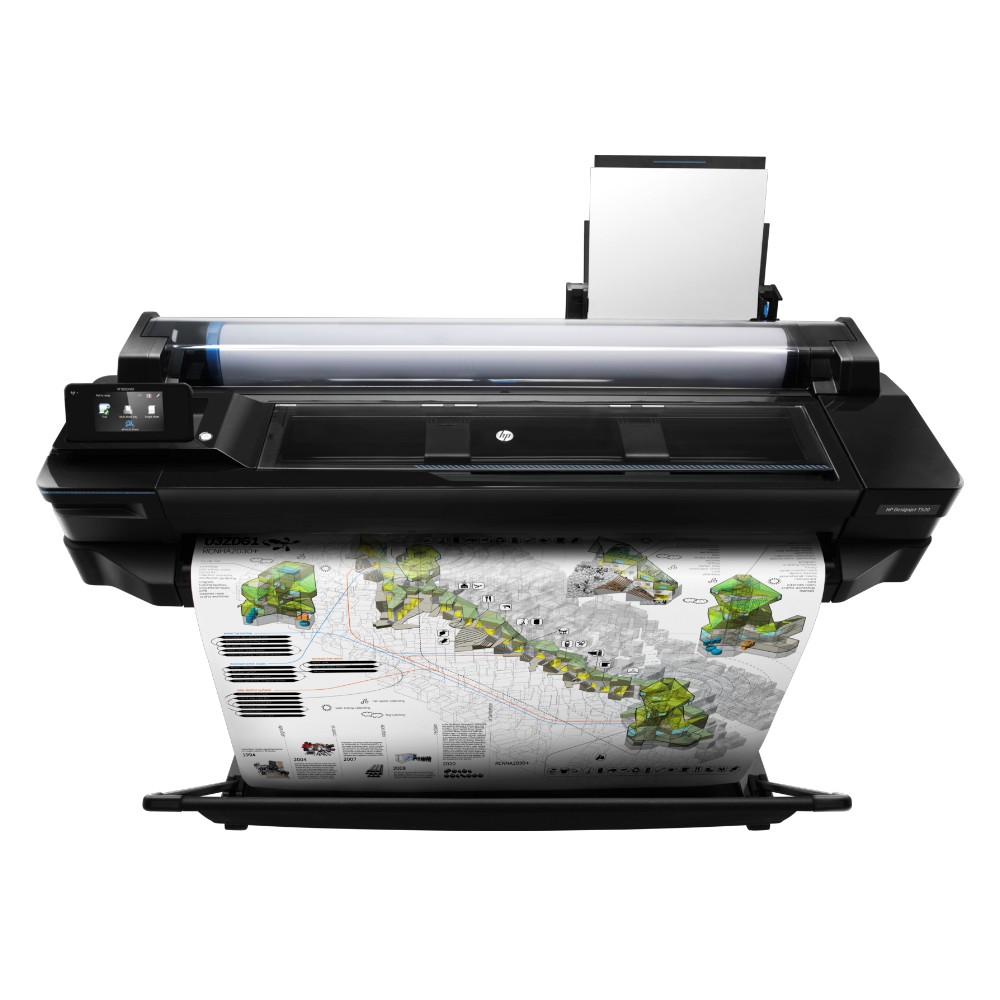

HP Designjet T520 36" Color Inkjet ePrinter

Product Description



PRODUCT HIGHLIGHTS

• Print Resolution: 1200dpi
• Print Speed: 275 Sq. Feet/Hour
• Ethernet & Wi-Fi Connectivity
• Output 36.0" Wide Sheets & Rolls
• Roll Feed With Automatic Cutter
• Print On Heavy Media Up To 280gsm
• Internal Memory: 1.0GB



Printing Method
Printing Technology	4-color thermal inkjet
Maximum Resolution	1200 x 1200 input dpi
Line Accuracy	±0.1%
Ink Palette	Cyan, Magenta, Yellow, Black
Ink Type	Dye-Based: Cyan, Magenta, Yellow Pigment-Based: Black
Ink Cartridge Configuration	4 individual cartridges
Maximum Optical Density	2.10 maximum black optical density (8 L*min)
Printer Language	HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4
Print Speed	US D - Best: 16.3 min/page US D - Normal: 9.3 min/page US D - Draft: 1.3 min/page



Paper Handling
Paper-Feed Method	Sheet feed, roll feed, input tray;
Cutter	Automatic cutter
Maximum Paper Width	36.0" (91.44 cm)
Paper Sizes	Sheet: 8.3 x 11.0 to 36.0 x 66.0" (21.0 x 27.94 to 91.44 x 167.6 cm) Roll Width: 11.0 to 36.0" (27.94 to 91.44 cm)
Paper Types	Plain: Bond, coated, heavyweight coated, recycled, plain, bright white Technical: Natural tracing, vellum Film: Clear, matte Photo: Satin, gloss, semigloss, premium, polypropylene Self-Adhesive: Adhesive, polypropylene
Media Thickness	Up to 11.8 mil (299.72 micron)
Media Weight	Roll Feed: 60 to 280 g/m2 Manual Feed: 60 to 280 g/m2 Input Tray: 60 to 220 g/m2
Maximum Roll Print Length	150.0' (46.0 m)
Maximum Media Roll Diameter	3.9" (9.91 cm)



Connectivity
Interface	Hi-Speed USB 2.0 Fast Ethernet (100Base-T) Wi-Fi
OS Compatibility	Windows: Windows 7 Ultimate/Professional/Home Premium, Vista Ultimate/Business/Home Premium, XP (32/64-bit) Professional/Home, Server 2008 (32/64-bit), Server 2008 R2, Server 2003 (32/64-bit) Mac: OS X 10.6, 10.7, 10.8 Citrix: XenApp, XenServer
Internal Memory	1.0 GB



Physical
Control Panel	LCD: 4.3" color touchscreen Icons: Wireless, Home, Help, Previous/Next, Back, Cancel
Power Requirements	100 to 240 V AC ±10%, 50/60 Hz, 1200 mA max
Power Consumption	Printing: < 35 W Power Save: < 4.5 W Standby: < 0.3 W
Acoustic Noise	Sound Power (Operating): 6.5 B(A) Sound Power (Standby): < 3.4 B(A) Sound Pressure (Operating): 48 dB(A) Sound Pressure (Standby:) < 16 dB(A)
Certifications	Safety: CSA, EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Mexico (NYCE) Electromagnetic: Class B requirements, including USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Certified as Class A product: Korea (KCC) Environmental: Energy Star, WEEE, EU RoHS, REACH, EuP, FEMP
Temperature / Humidity	Operating Temperature: 41 to 104 °F (5 to 40 °C) Recommended: 59 to 95 °F (15 to 35 °C) Storage Temperature: -13 to 131 °F (-25 to 55 °C) Operating Humidity: 20 to 80% Storage Humidity: 0 to 95%
Dimensions (WxDxH)	50.9 x 20.9 x 36.7" (129.2 x 53.0 x 93.2 cm)
Weight	86.4 lb (39.2 kg)



Packaging Info
Package Weight	131.0 lb
Box Dimensions (LxWxH)

56.0 x 24.6 x 22.7"
