Product Description

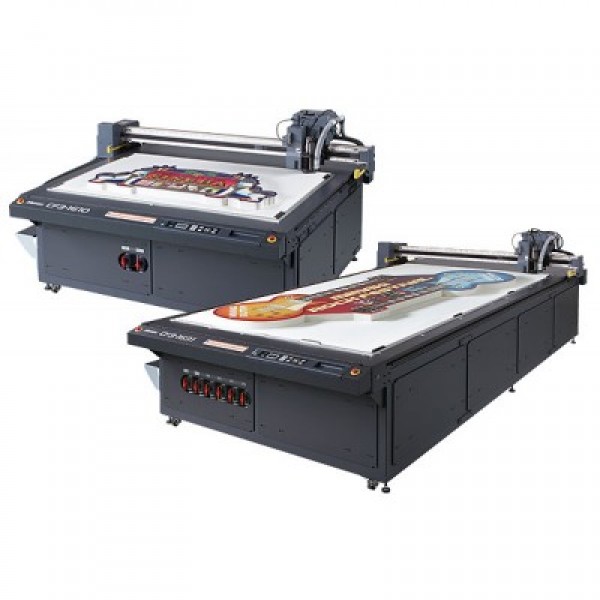

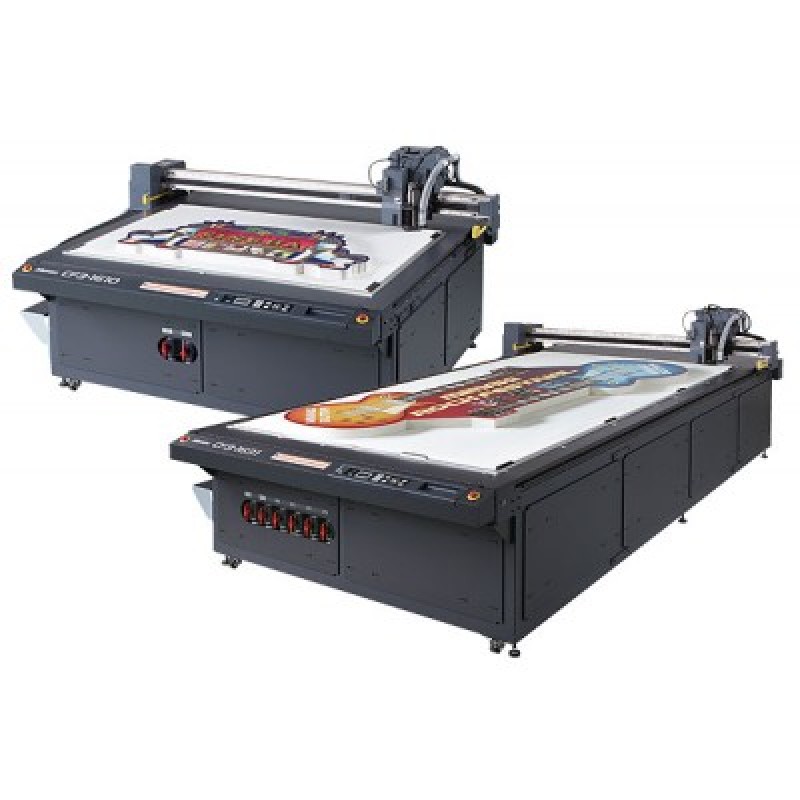

Equipped with a newly developed router head to cut up to 50mm (2'')* in thickness.
Cuts a wide range of materials with high accuracy
Supports both small and large size media up to 1.6m x 3.1m (63" x 122"). Even difficult acrylic or aluminum composite panels can be cut with consistently high accuracy. User exchangeable cutting heads to suit a wide range of conditions widen your possibilities greatly.
CF3-1631 CF3-1610 Effective cut area 1,600 x 3,100mm
(63" x 122") 1,600 x 1,000mm
(63" x 39.3") Head drive method X.Y,Z.θ DC servo, special timing belt Maximum speed 50cm (19.6'')/s Maximum acceleration 0.5G Static accuracy Repeatability ±0.15mm Distance ±0.1mm,or ±0.1% whichever is greater Origin repeatability ±0.15mm Maximum cut depth Router : 50mm (1.96"), Tangential cutter : 10mm (0.39"),
Reciprocating cutter : 20mm (0.78") Maximum media thickness Router : 50mm (1.96"), Tangential cutter : 30mm (1.18"),
Reciprocating cutter : 20mm (0.78") Material clamp Vacuum system with blower Command MGL-II c3 (MGL-IIc) Interface USB, RS-232C Main unit power supply 200V~240V, Single phase 50/60Hz Less than 6A Dust collector power supply AC100V-120V, Single phase 50/60Hz, Less than 15A
AC200V-240V, Single phase 50/60Hz, Less than 10A Blower power supply AC200V-240V, Single phase 50/60Hz,
Less than 30A per unit Dimensions (WxDxH) 2,250 x 4,120 x 1,320mm
(88.6" x 162.2" x 52.0") 2,250 x 1,860 x 1,320mm
(88.6" x 73.3" x 52.0")
- Some of the sample images in this website are artificial renderings.
- All specifications and designs displayed in this website are subject to change without prior notice.
- Company names and product names written in this website are trademarks or registered trademarks of their respective owners.
Supports both small and large size media up to 1.6m x 3.1m (63" x 122"). Even difficult acrylic or aluminum composite panels can be cut with consistently high accuracy. User exchangeable cutting heads to suit a wide range of conditions widen your possibilities greatly.
| CF3-1631 | CF3-1610 | ||
|---|---|---|---|
| Effective cut area | 1,600 x 3,100mm (63" x 122") | 1,600 x 1,000mm (63" x 39.3") | |
| Head drive method | X.Y,Z.θ DC servo, special timing belt | ||
| Maximum speed | 50cm (19.6'')/s | ||
| Maximum acceleration | 0.5G | ||
| Static accuracy | Repeatability | ±0.15mm | |
| Distance | ±0.1mm,or ±0.1% whichever is greater | ||
| Origin repeatability | ±0.15mm | ||
| Maximum cut depth | Router : 50mm (1.96"), Tangential cutter : 10mm (0.39"), Reciprocating cutter : 20mm (0.78") | ||
| Maximum media thickness | Router : 50mm (1.96"), Tangential cutter : 30mm (1.18"), Reciprocating cutter : 20mm (0.78") | ||
| Material clamp | Vacuum system with blower | ||
| Command | MGL-II c3 (MGL-IIc) | ||
| Interface | USB, RS-232C | ||
| Main unit power supply | 200V~240V, Single phase 50/60Hz Less than 6A | ||
| Dust collector power supply | AC100V-120V, Single phase 50/60Hz, Less than 15A AC200V-240V, Single phase 50/60Hz, Less than 10A | ||
| Blower power supply | AC200V-240V, Single phase 50/60Hz, Less than 30A per unit | ||
| Dimensions (WxDxH) | 2,250 x 4,120 x 1,320mm (88.6" x 162.2" x 52.0") | 2,250 x 1,860 x 1,320mm (88.6" x 73.3" x 52.0") | |
- Some of the sample images in this website are artificial renderings.
- All specifications and designs displayed in this website are subject to change without prior notice.
- Company names and product names written in this website are trademarks or registered trademarks of their respective owners.
Model
CF3-1610M Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3") CF3-1610R1 Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3") CF3-1610TF2 Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3") CF3-1631M Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0") CF3-1631R1 Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0") CF3-1631TF2 Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0")
| CF3-1610M | Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3") |
|---|---|
| CF3-1610R1 | Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3") |
| CF3-1610TF2 | Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3") |
| CF3-1631M | Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0") |
| CF3-1631R1 | Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0") |
| CF3-1631TF2 | Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0") |
