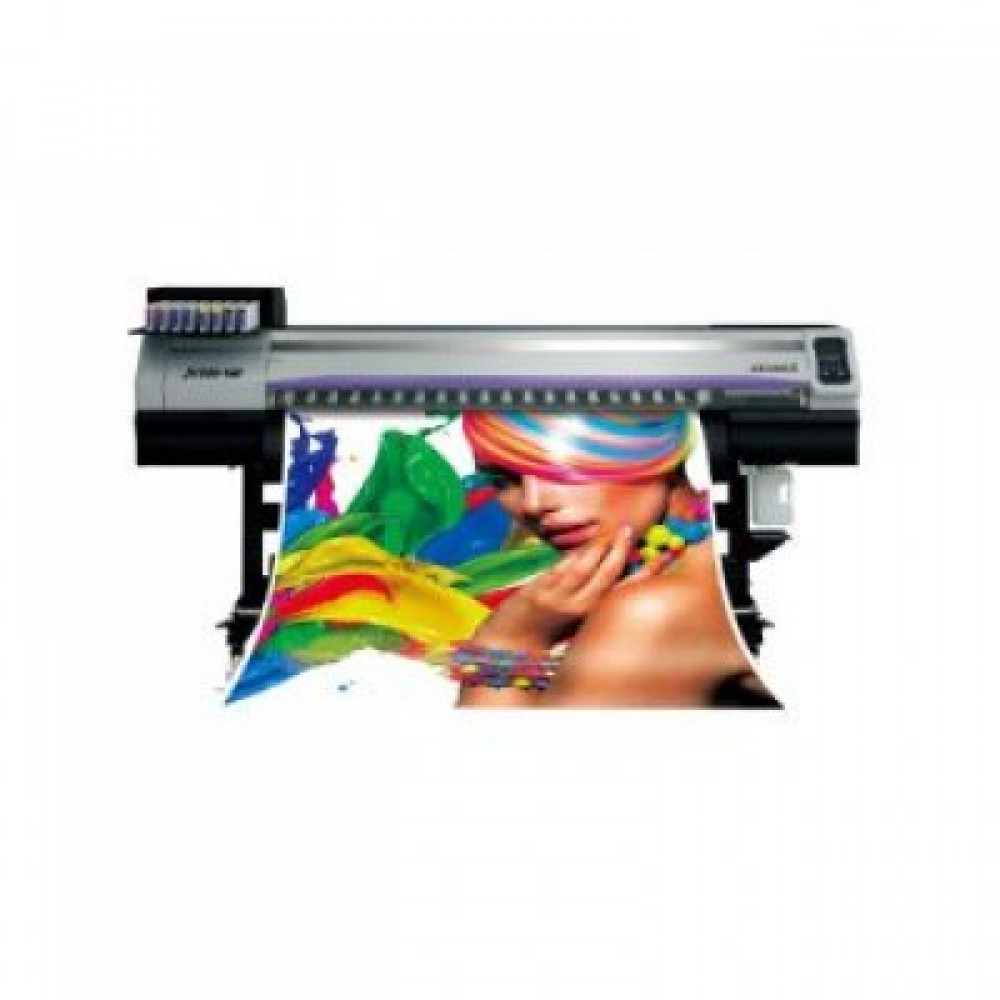

Product Description
High ink performance and machine technology achieves outstanding speed.
Highest-speed printing is achieved in the same product category through Mimaki’s high technological standards and ink performance.
Highest-speed printing is achieved in the same product category through Mimaki’s high technological standards and ink performance.
Newly developed printhead and ink jet technology
Two newly developed staggered printheads deliver a wider print swath. Each ink color has its own specific gravity and viscosity. To achieve precise placement of the ink droplets onto the media, Mimaki designed an optimum waveform that allows the printhead to jet each ink color at the appropriate jetting angle without losing excellent ink droplet circularity. Moreover, various ink droplet sizes are precisely placed from the minimum size 4pl to the maximum size 35pl. Small droplets create beautiful high-resolution printing, and large droplets are very useful for high-speed printing. Thus, the JV300-130/160 satisfies a wide range of needs including beautiful high-quality printing and productive high-speed printing.
JV300-130 JV300-160 Printhead On-demand piezo head (2 staggered printheads) Print resolution 360dpi, 540dpi, 720dpi, 1,080dpi, and 1,440dpi Maximum print width 1,361mm (53.5") 1,610mm (63.3") Maximum media width 1,371mm (53.9") 1,620mm (63.7") Ink Type/Color Eco-solvent ink
・SS21（C,M,Y,K,Lc,Lm,Lk,Or,W）
・BS3（C,M,Y,K）*Only available in specific emerging countries
・BS4（C,M,Y,K）*Only available in specific emerging countries
・ES3（C,M,Y,K,Lc,Lm,W）
Sublimation ink
・Sb53（Bl,M,Y,K/Dk,Lbl,Lm）
・Sb54（Bl,M,Y,K,Lbl,Lm） Package size
*1 SS21: 440ml Ink cartridge / 2L Ink pack (*W is provided in 220ml Ink cartridge only)
BS3, BS4: 600ml Ink pack / 2L Ink pack
ES3: 440ml Ink cartridge (*W is provided in 220ml Ink cartridge only)
Sb53, Sb54: 440ml Ink cartridge / 2L Ink pack Circulation
system *2 White ink circulation using Mimaki Circulation Technology (MCT) Media thickness 1.0mm or less Rolled media weight 40kg (88 lb) or less Certifications VCCI class A, FCC class A, ETL UL 60950-1
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, REACH, Energy Star, RCM
(CCC is in the process of being acquired.) Interface USB 2.0, LAN for E-mail notification function Power supply Single-phase (AC 100–120V / AC 220–240V) ×2 Power consumption 1,440W×2 or less (at AC 100V system)
1,920W×2 or less (at AC 200V system) Operational environment Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing) Dimensions (W×D×H) 2,525mm×700mm×1,392mm
(99"×28"×55") 2,775mm×700mm×1,392mm
(109"×28"×55") Weight 170kg (375 lb) 200kg (441 lb)
Two newly developed staggered printheads deliver a wider print swath. Each ink color has its own specific gravity and viscosity. To achieve precise placement of the ink droplets onto the media, Mimaki designed an optimum waveform that allows the printhead to jet each ink color at the appropriate jetting angle without losing excellent ink droplet circularity. Moreover, various ink droplet sizes are precisely placed from the minimum size 4pl to the maximum size 35pl. Small droplets create beautiful high-resolution printing, and large droplets are very useful for high-speed printing. Thus, the JV300-130/160 satisfies a wide range of needs including beautiful high-quality printing and productive high-speed printing.
| JV300-130 | JV300-160 | ||
|---|---|---|---|
| Printhead | On-demand piezo head (2 staggered printheads) | ||
| Print resolution | 360dpi, 540dpi, 720dpi, 1,080dpi, and 1,440dpi | ||
| Maximum print width | 1,361mm (53.5") | 1,610mm (63.3") | |
| Maximum media width | 1,371mm (53.9") | 1,620mm (63.7") | |
| Ink | Type/Color | Eco-solvent ink ・SS21（C,M,Y,K,Lc,Lm,Lk,Or,W） ・BS3（C,M,Y,K）*Only available in specific emerging countries ・BS4（C,M,Y,K）*Only available in specific emerging countries ・ES3（C,M,Y,K,Lc,Lm,W） Sublimation ink ・Sb53（Bl,M,Y,K/Dk,Lbl,Lm） ・Sb54（Bl,M,Y,K,Lbl,Lm） | |
| Package size *1 | SS21: 440ml Ink cartridge / 2L Ink pack (*W is provided in 220ml Ink cartridge only) BS3, BS4: 600ml Ink pack / 2L Ink pack ES3: 440ml Ink cartridge (*W is provided in 220ml Ink cartridge only) Sb53, Sb54: 440ml Ink cartridge / 2L Ink pack | ||
| Circulation system *2 | White ink circulation using Mimaki Circulation Technology (MCT) | ||
| Media thickness | 1.0mm or less | ||
| Rolled media weight | 40kg (88 lb) or less | ||
| Certifications | VCCI class A, FCC class A, ETL UL 60950-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM (CCC is in the process of being acquired.) | ||
| Interface | USB 2.0, LAN for E-mail notification function | ||
| Power supply | Single-phase (AC 100–120V / AC 220–240V) ×2 | ||
| Power consumption | 1,440W×2 or less (at AC 100V system) 1,920W×2 or less (at AC 200V system) | ||
| Operational environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) | ||
| Dimensions (W×D×H) | 2,525mm×700mm×1,392mm (99"×28"×55") | 2,775mm×700mm×1,392mm (109"×28"×55") | |
| Weight | 170kg (375 lb) | 200kg (441 lb) | |
