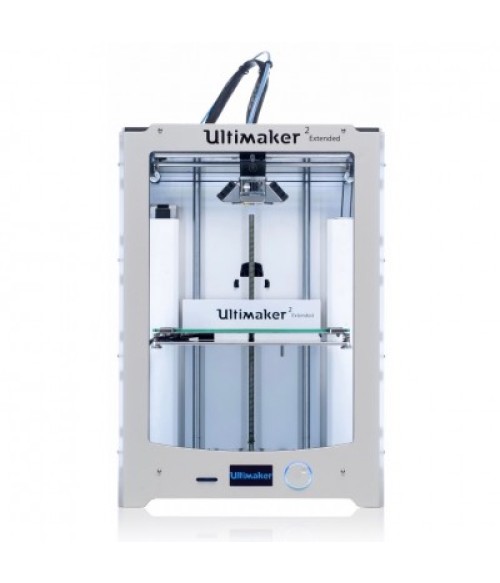

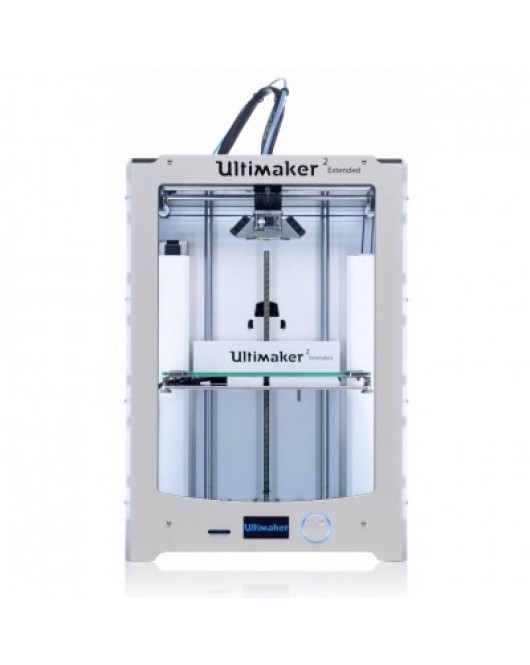

Ultimaker 2 Extended+ 3D Printer
Engineered to perform, the Ultimaker 2+ is reliable, efficient, and user-friendly. Thanks to its support of a wide range of materials, it’s suitable for a huge variety of applications, from prototypes to customized tools. It’s a great all-around 3D printer that delivers consistent results.
Powerful features seamlessly combined
Build volume
- Ultimaker 2+223 x 223 x 205 mm
- Ultimaker 2 Extended+223 x 223 x 305 mm
Materials
- Filament system:Open filament system
- Optimized for:PLA, ABS, CPE, CPE+, PC, Nylon, TPU 95A
Layer resolution
- From:600 micron
- Up to:20 micron
Speed
- Build speed:Up to 24 mm³/s
- Travel speed:Up to 300 mm/s
Enriched by our global open source community
Geared feeder, increased reliability
The innovative feeder allows you to easily swap filament and choose the correct pressure for your filament.
Swappable nozzle, greater control
Easily switch between 0.25, 0.4, 0.6 and 0.8 mm nozzles for greater detail or faster print speed.
Optimized airflow, smoother prints
The new fancaps ensure the airflow is aimed perfectly below the nozzle and equally from both sides.
Enjoying a world class 3D printer is just the start
Free extras include:
- An SD card, glue stick, grease, hex wrenches and a USB cable
- Swappable 0.25, 0.4, 0.6 and 0.8 mm nozzles
- A 0.75 kg spool of Ultimaker Silver PLA
- Cura, our award-winning print preparation software
- Powerful Ultimaker app
- A calibration card to level the build plate
- Comprehensive 12 month warranty
- Lifetime expert support
- An active global community of makers
Dimensions with bowden tube and spool holder:
342 x 493 x 688 mm
(13.5 x 19.4 x 27.1 inches)
Weight:
12.3 kg (434 ounces)
Printer and printing properties
Assembly type Pre-assembled
Layer Resolution
0.25 mm nozzle: 150 to 60 micron
0.40 mm nozzle: 200 to 20 micron
0.60 mm nozzle: 400 to 20 micron
0.80 mm nozzle: 600 to 20 micron
0.40 mm nozzle: 200 to 20 micron
0.60 mm nozzle: 400 to 20 micron
0.80 mm nozzle: 600 to 20 micron
Build plate
50 °C to 100 °C heated glass build plate
Build plate leveling
Assisted leveling process
Print technology
Fused Deposition Modeling (FDM)
Print head
Swappable nozzle
Build speed
0.25 nozzle: up to 8 mm³/s
0.40 nozzle: up to 16 mm³/s
0.60 nozzle: up to 23 mm³/s
0.80 nozzle: up to 24 mm³/s
0.40 nozzle: up to 16 mm³/s
0.60 nozzle: up to 23 mm³/s
0.80 nozzle: up to 24 mm³/s
Print head travel speed
30 to 300 mm/s
Feeder type
Geared feeder
XYZ accuracy
12.5, 12.5, 5 micron
Nozzle diameter
Included are 0.25, 0.4, 0.6 and 0.8 mm nozzles
Nozzle temperature
180 °C to 260 °C
Nozzle heat up time
~ 1 minute
Build plate heat up time
< 4 minutes
Operating sound
50 dBA
Materials
System
Open filament system
Filament diameter
2.85 mm
Supported materials
PLA, ABS, CPE, CPE+, PC, Nylon, TPU 95A
Ultimaker filament
A spool of Ultimaker filament is 750 g
Requirements
Software
Cura, our free print preparation software
Supported OS
Free on macOS, Windows and Linux
Supported file types
STL, OBJ and AMF
File transfer
Standalone 3D printing from SD card (included)
Operating ambient temperature
15 °C to 32 °C (59 °F to 90 °F)
Nonoperating temperature
0 °C to 32 °C (32 °F to 90 °F)
Input
100 - 240V
4A, 50-60Hz
221 W max.
4A, 50-60Hz
221 W max.
Output
24 V DC, 9.2 A
Ultimaker 2 Extended+ 3D Printer
- Product Code: ULT11000
- Brand: ULTIMAKER
- Product Code: ULT11000
- Availability: In Stock
$1,525.00
