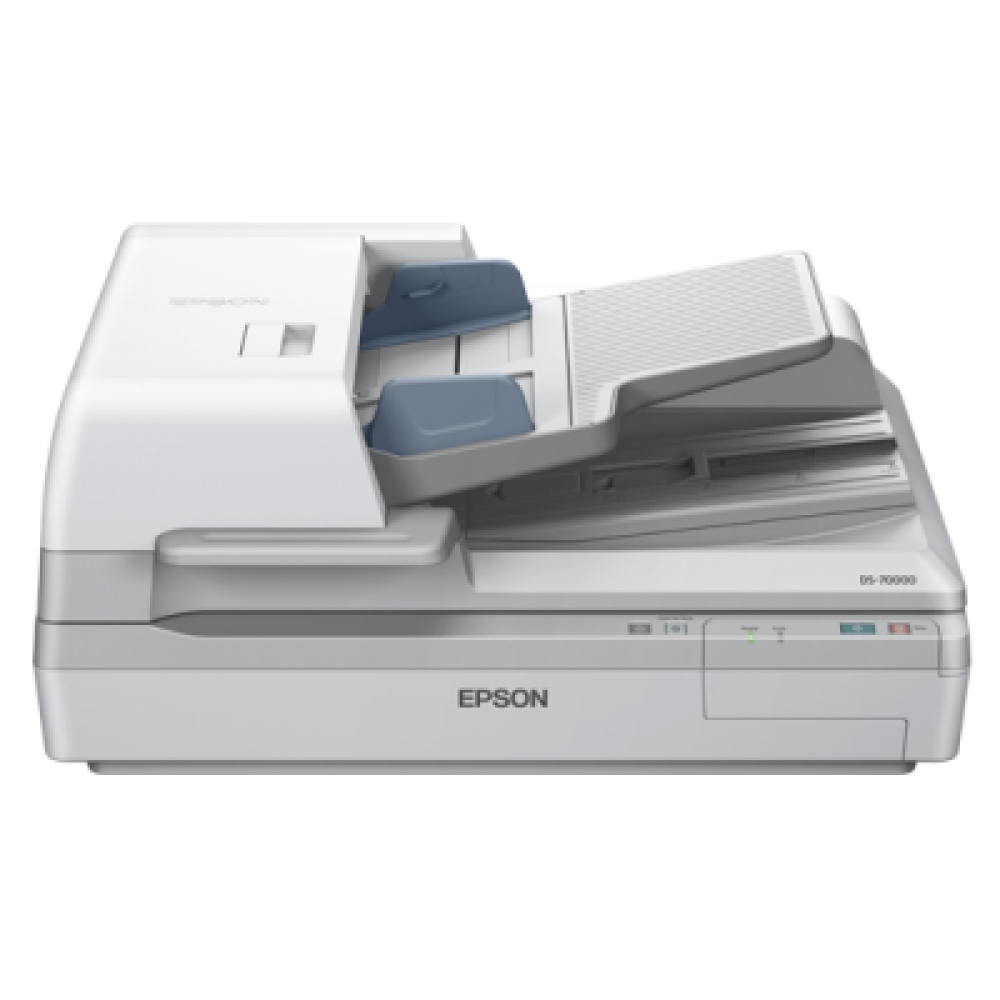

Epson WorkForce DS-70000 Color Document Scanner
The Epson WorkForce DS-70000 is a high-performance, large-format color document scanner designed for demanding business environments. It delivers ultra-fast one-pass duplex scanning at speeds of up to 70 ppm / 140 ipm, ensuring maximum productivity for high-volume document workflows.
Equipped with a 4-line CCD sensor (RGB and Black), the DS-70000 produces vivid color scans and sharp, accurate text. Its versatile design combines a 200-sheet Automatic Document Feeder with an 11.7" x 17" flatbed, making it ideal for scanning standard documents, large-format materials, bound books, maps, and drawings.
Key Features
- Ultra-fast one-pass duplex scanning up to 70 ppm / 140 ipm
- Large-format scanning up to 11.7" x 100" via ADF
- 4-line CCD sensor for crisp text and accurate color reproduction
- 200-sheet Automatic Document Feeder with ultrasonic double-feed detection
- Flatbed scanning for books, maps, and oversized documents
- Optional network scanning with Document Capture Pro software
- Scan to searchable PDF and popular cloud services
What's in the Box
- Epson WorkForce DS-70000 Scanner
- Setup Sheet
- USB Cable
- Scanner Software CD
- Power Cord
| Scanner Type | Flatbed Color Document Scanner with ADF |
|---|---|
| Photoelectric Device | 600 dpi Color CCD, 4-line sensor (RGB and Black) |
| Optical Resolution | 600 dpi |
| Maximum Resolution | 600 dpi |
| Color Bit Depth | 16-bit internal / 8-bit external |
| Maximum Scan Area | ADF: 11.7" x 100" / Flatbed: 11.7" x 17" |
| Light Source | ReadyScan® LED |
| Scanning Speed (200 dpi) | B/W & Color: Up to 70 ppm / 140 ipm (ADF) |
| Scanning Speed (300 dpi) | B/W & Color: Up to 50 ppm / 100 ipm (ADF) |
| Scanning Speed (600 dpi) | B/W: Up to 25 ppm / 50 ipm, Color: Up to 12 ppm / 24 ipm (ADF) |
| ADF Capacity | 200 sheets (75 g/m²) |
| Paper Size Support | Min: 2.7" x 4.7" / Max: 11.7" x 100" (ADF) |
| Paper Weight | 35 – 128 g/m² (up to 190 g/m² for small sizes) |
| Connectivity | Hi-Speed USB 2.0 |
| Supported Operating Systems | Windows XP through Windows 8, Mac OS X 10.5.x – 10.8.x |
| Dimensions (W x D x H) | 25.2" x 18.5" x 11.3" |
| Weight | 59.2 lb |
| Daily Duty Cycle | Up to 8,000 pages per day |
| Power Consumption | Operating: 79 W / Standby: 12.5 W / Sleep: 1.5 W |
| Power Requirements | AC 100–240 V, 50–60 Hz |
