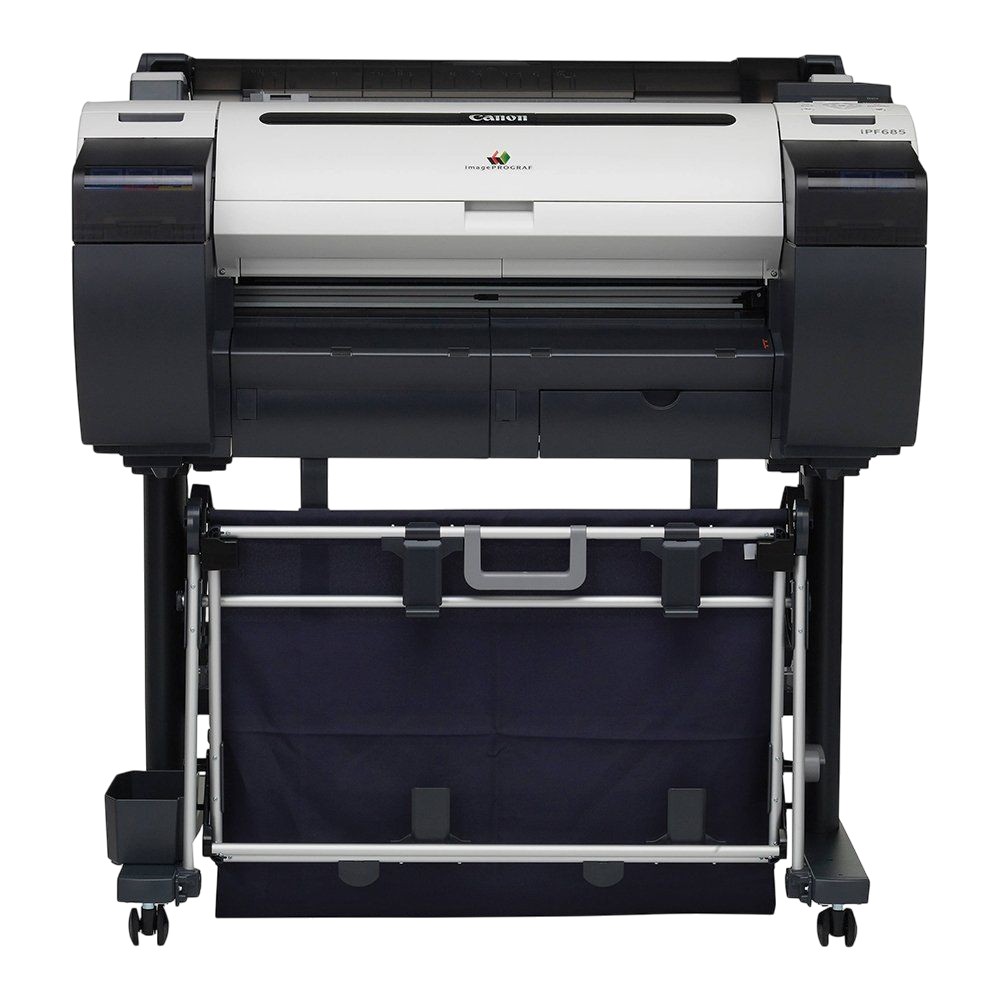

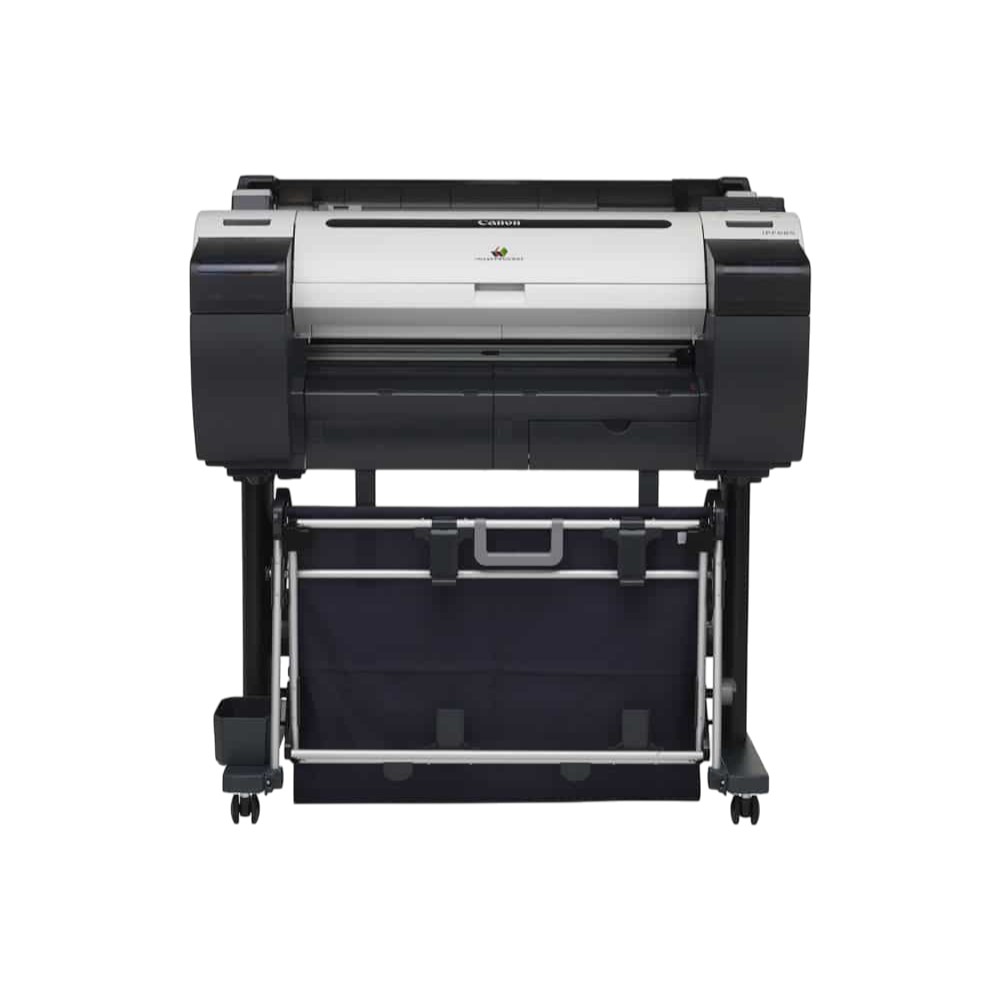

Canon imagePROGRAF iPF685 24" Large-Format Inkjet Printer
The Canon imagePROGRAF iPF685 is a high-speed, 24-inch large-format solution designed for technical documents, CAD, and GIS applications. Delivering a 24 x 36" drawing in just 25 seconds, it combines exceptional productivity with precise line accuracy and vibrant color.
Equipped with a 320GB internal hard drive and a five-color Dye/Pigment Reactive Ink set, the iPF685 is built for high-volume workflows. Its unique sub-ink tank system allows for continuous printing even during tank replacement, ensuring your production never stops.
Product Highlights
- Max Resolution: 2400 x 1200 dpi
- Print Speed: 24 x 36" Drawing in 25 sec (Economy Mode)
- Five-Color Dye/Pigment Reactive Ink Set
- Integrated 320GB Internal Hard Drive
- Sub-Ink Tank System for continuous printing
- Economy Print Mode for lower cost per page
- Optimized Module for AutoCAD and PosterArtist Lite
Technologies
- FINE (Full-Photolithography Inkjet Nozzle Engineering)
- L-COA (Layout Printer Common Architecture) Processor
- Reactive Ink System
- Non-firing nozzle detection and compensation
- GARO, HP-GL/2, and HP RTL Support
| Print Head | PF-04 (Single) |
|---|---|
| Ink Droplet Size | 4 Picoliter |
| Ink Tank Capacity | 130ml (PFI-107) / 300ml (PFI-207) |
| Number of Nozzles | 15,360 (MBK: 5,120; BK, C, M, Y: 2,560 each) |
| Line Accuracy | ±0.1% or less |
| Media Width | Roll: 10" - 24" | Cut Sheet: 8" - 24" |
|---|---|
| Media Thickness | 0.07 – 0.8mm (2.8 – 31.4 mil) |
| Maximum Roll Diameter | 150mm (5.9") |
| Borderless Printing | 10", B4, A3, 14", A2, 17", B2, A1, 24" |
| Paper Feed Method | Top-loading roll and cut sheet; Front output |
| Interface | USB 2.0 High-Speed, 10/100/1000Base-T/TX |
|---|---|
| Hard Drive | 320 GB |
| Standard Memory | 256 MB |
| OS Compatibility | Windows XP/Vista/7/8/Server; Mac OS X 10.6.8+ |
| Dimensions (WxDxH) | 106.7 x 99.1 x 109.2 cm (Basket extended) |
|---|---|
| Weight | Approx. 56 kg (125 lb) with stand |
| Power Consumption | 140W or less (Operation); 5W or less (Standby) |
| Acoustic Noise | 47 dB (Operation) |
