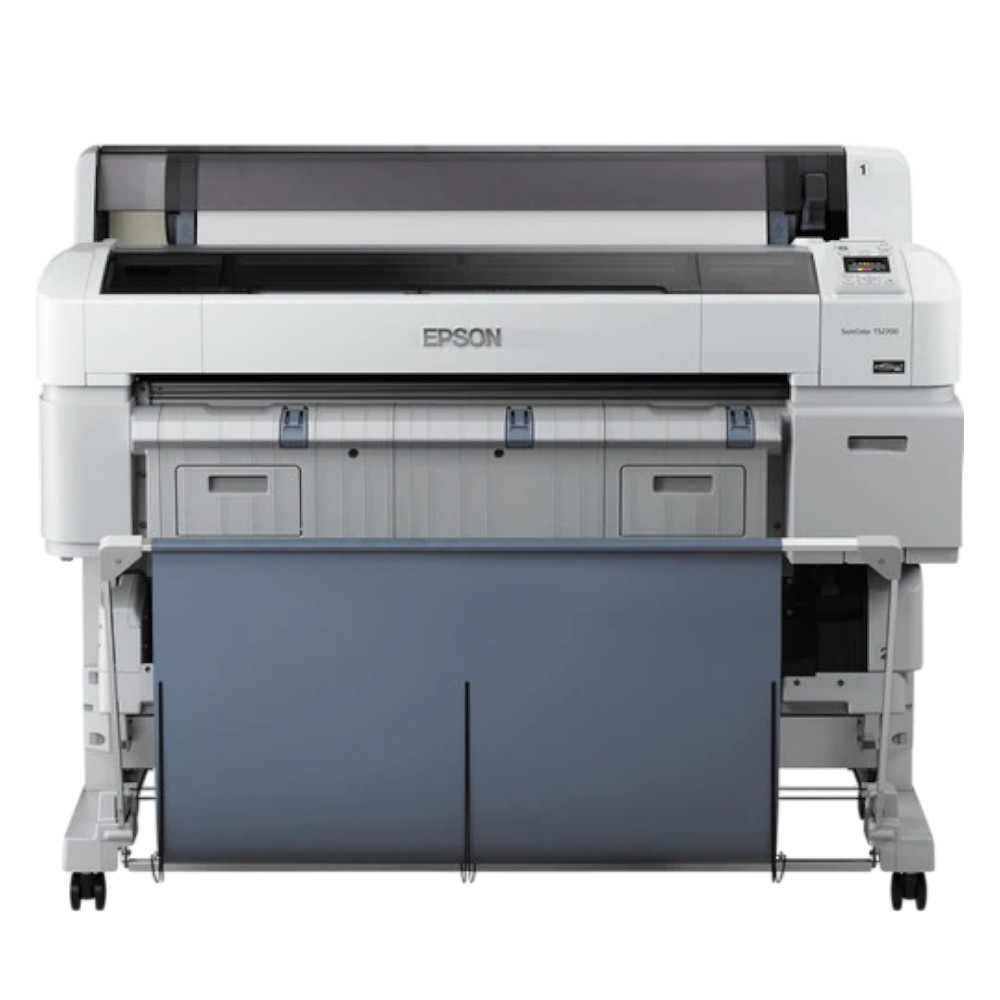

Epson SureColor T5270D 36-Inch Dual Roll Large-Format Printer
The Epson SureColor T5270D takes productivity to the next level with its Dual Roll capability. This 36-inch wide printer allows users to hold two different media types or sizes simultaneously, featuring automatic switching between rolls to minimize downtime. It is a powerhouse for technical drawings, graphic posters, and retail signage.
Equipped with the PrecisionCore® TFP® printhead and UltraChrome® XD pigment ink, the T5270D delivers precise 2880 x 1440 dpi prints. It is exceptionally fast, producing a D-sized (22 x 34") plot in just 25 seconds, ensuring that your high-volume workflows remain efficient and professional.
Key Performance Features
- Automatic Dual Roll Switching: Load two rolls at once for seamless transitions between media types or for uninterrupted high-volume printing.
- Blazing Fast Speeds: Max speed of 740 ft² per hour; D-size plots ready in 25 seconds.
- PrecisionCore® TFP® Technology: Advanced 1/1000 mm thin print chip provides extreme dot control for unmatched clarity.
- UltraChrome® XD Ink: Delivers brilliant colors and crisp, archival lines that are smudge and water-resistant.
- Versatile Media Handling: Supports media up to 59 mil thick and cut-sheets from 8.3" up to 36" wide.
- Smart Workflow: Features in-printer email notifications for job status, errors, and low ink alerts.
| Printing Technology | PrecisionCore TFP Print Head (10-channel, drop-on-demand) |
|---|---|
| Maximum Resolution | 2880 x 1440 dpi |
| Ink Type | UltraChrome XD Pigment Ink (5-Color: C, M, Y, PK, MK) |
| Ink Cartridge Compatibility | Epson T692 (110ml), T693 (350ml), T694 (700ml) |
| Print Speed (D-size Plot) | 22 x 34" in 25 Seconds |
| Minimum Line Width | 0.7 mil / 0.02 mm (Line Accuracy ±0.1%) |
| Minimum Droplet Size | 3.5 pL |
| Media Handling | Dual Roll Feed (Automatic Switching), Manual Sheet Feed |
| Media Width Support | Roll: 10" to 36" | Sheet: 8.3" to 36" |
| Maximum Media Thickness | Up to 59.1 mil (1.5 mm) |
| Printer Language | HP-GL/2, HP-RTL |
| Interface | USB 2.0, Ethernet (10/100/1000Base-T) |
| Dimensions (with Stand) | 56.0 x 30.0 x 45.0" (142.0 x 76.0 x 114.0 cm) |
| Weight (with Stand) | 261.0 lb (118.0 kg) |
Advanced Options & Support
- Archival Quality: Pigmented ink set ensures prints are durable for long-term storage.
- Optional Modules: Support for optional 320 GB print server, Adobe PostScript 3 engine, and multifunction scanning units.
- Control Panel: Intuitive front-loading cartridges and a full-color LCD control panel.
- Warranty: Includes one-year of on-site service and free phone support.
