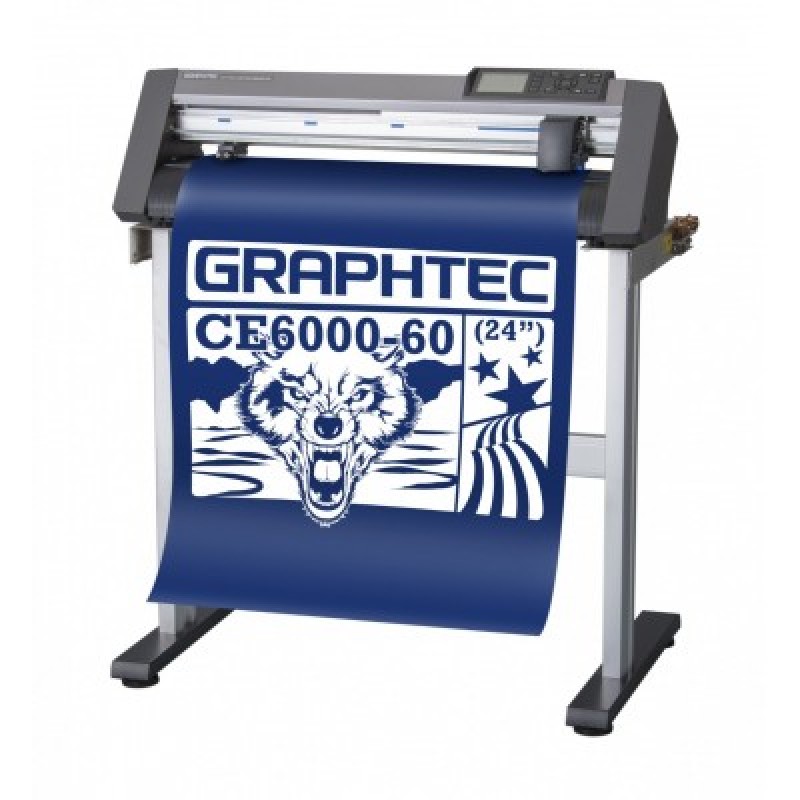

Graphtec CE6000-60 (24″)
USD 2,000.00
- Brand: GRAPHTEC
- Product Code: hrs9s1ymr649
- Availability: In Stock
Product Description
The CE6000 are Graphtec’s professional class of cutter plotter series, and updates the extremely successful CE5000 series with improved features. The CE6000 series is also cleaner, “greener” with an electronic design and manufacturing process that minimizes the environmental impact of the hardware equipment throughout its entire life cycle.
Includes Graphtec ARMS (Advanced Registration Mark Sensor) Contour Cut Pre-Printed Graphics Up to 300 & 450* grams of force Tangential Emulation 1 Table top, desktop Size (15″) 2 Included Stand Sizes (24″ and 48″)
The CE6000 are Graphtec’s professional class of cutter plotter series, and updates the extremely successful CE5000 series with improved features. The CE6000 series is also cleaner, “greener” with an electronic design and manufacturing process that minimizes the environmental impact of the hardware equipment throughout its entire life cycle.
Cutting plotter CE6000 series, Price Performance Leader
The CE6000 series sets the standard for high performance, low cost cutting plotters. It is equipped with professional-level features such as registration mark sensing and perforation cutting for producing a dividing line of labels or packaging mock-ups. The advanced features of the CE6000 series improve your work efficiency and increases productivity.
The CE6000 series sets the standard for high performance, low cost cutting plotters. It is equipped with professional-level features such as registration mark sensing and perforation cutting for producing a dividing line of labels or packaging mock-ups. The advanced features of the CE6000 series improve your work efficiency and increases productivity.
Specifications
Item CE6000-40 CE6000-60 CE6000-120 CE6000-120-AMO CPU 32-bit CPU Configuration Grit rolling type, digital servo drive Max. cutting area
(Guaranteed cutting area) 375 mm x 50 m *1
(356 mm x 2 m *1) 603 mm x 50 m *1
(584 mm x 5 m *1) 1213 mm x 50 m *1
(1194 mm x 5 m *1) Mark scanning margin Type 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm
Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m) Number of push roller 2 rollers 2 rollers 4 rollers 4 rollers Max. cutting speed 600 mm/s (All directions) 900 mm/s (at 45º direction) 1000 mm/s (at 45º direction) Max. acceleration 21.2 m/s2 (at 45º direction) 13.9 m/s2 (at 45º direction) Max. cutting force
(Instantaneous max. force) 2.94 N (300 gf) in 31 steps
(3.2 N (330 gf)) 4.41 N (450 gf) in 38 steps
(4.9 N (500 gf)) 4.41 N (450 gf) in 38 steps
(4.9 N (500 gf)) Minimum character size Approx. 5 mm alphanumeric (varies depending on character font and type of media) Repeatability Max. 0.1 mm in plot up to 2 m *1 Mountable number of tools 1 tool Blade type Supersteel Pen type Oil-based ballpoint, Water-based fiber-tip pen Media type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness
Polyester film, up to 0.25mm thickness (unguaranteed accuracy) Perforation cutting Yes (performed by force control) Interface RS-232C / USB2.0 (High Speed) Buffer memory 2 MB Command sets GP-GL / HP-GL™ emulation (Set by the menu or the command, and selects from GP-GL, HP-GL™, or Auto detect) Display Graphic type LCD with backlight (240dots x 128dots) Registration mark sensing system Scans the mark by optical sensor (ARMS5.0) Power source 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz Power consumption 120 VA Operating environment
(Guaranteed accuracy) 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
(16 to 32 ºC, 35 to 70 % R.H. (non-condensing)) External dimensions (W x D x H, Approx. [mm]) 672 x 338 x 266 900 x 593 x 1046 1541 x 736 x 1250 Weight 10.5 kg 21 kg (including stand) 40.5 kg (including stand) Included software *2 Windows Driver, Graphtec Studio, Cutting Master 3, Plotter Controller Compatible OS *2 Windows 10 / 8.1 / 8 / 7 / Vista , Mac OS 10.6 to 10.10 Compatible Standards Safety: cUL / CE mark, EMC: VCCI Class A / FCC Class A / EN55022 Class A
| Item | CE6000-40 | CE6000-60 | CE6000-120 | CE6000-120-AMO |
|---|---|---|---|---|
| CPU | 32-bit CPU | |||
| Configuration | Grit rolling type, digital servo drive | |||
| Max. cutting area (Guaranteed cutting area) | 375 mm x 50 m *1 (356 mm x 2 m *1) | 603 mm x 50 m *1 (584 mm x 5 m *1) | 1213 mm x 50 m *1 (1194 mm x 5 m *1) | |
| Mark scanning margin | Type 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m) | |||
| Number of push roller | 2 rollers | 2 rollers | 4 rollers | 4 rollers |
| Max. cutting speed | 600 mm/s (All directions) | 900 mm/s (at 45º direction) | 1000 mm/s (at 45º direction) | |
| Max. acceleration | 21.2 m/s2 (at 45º direction) | 13.9 m/s2 (at 45º direction) | ||
| Max. cutting force (Instantaneous max. force) | 2.94 N (300 gf) in 31 steps (3.2 N (330 gf)) | 4.41 N (450 gf) in 38 steps (4.9 N (500 gf)) | 4.41 N (450 gf) in 38 steps (4.9 N (500 gf)) | |
| Minimum character size | Approx. 5 mm alphanumeric (varies depending on character font and type of media) | |||
| Repeatability | Max. 0.1 mm in plot up to 2 m *1 | |||
| Mountable number of tools | 1 tool | |||
| Blade type | Supersteel | |||
| Pen type | Oil-based ballpoint, Water-based fiber-tip pen | |||
| Media type | Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness Polyester film, up to 0.25mm thickness (unguaranteed accuracy) | |||
| Perforation cutting | Yes (performed by force control) | |||
| Interface | RS-232C / USB2.0 (High Speed) | |||
| Buffer memory | 2 MB | |||
| Command sets | GP-GL / HP-GL™ emulation (Set by the menu or the command, and selects from GP-GL, HP-GL™, or Auto detect) | |||
| Display | Graphic type LCD with backlight (240dots x 128dots) | |||
| Registration mark sensing system | Scans the mark by optical sensor (ARMS5.0) | |||
| Power source | 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz | |||
| Power consumption | 120 VA | |||
| Operating environment (Guaranteed accuracy) | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) (16 to 32 ºC, 35 to 70 % R.H. (non-condensing)) | |||
| External dimensions (W x D x H, Approx. [mm]) | 672 x 338 x 266 | 900 x 593 x 1046 | 1541 x 736 x 1250 | |
| Weight | 10.5 kg | 21 kg (including stand) | 40.5 kg (including stand) | |
| Included software *2 | Windows Driver, Graphtec Studio, Cutting Master 3, Plotter Controller | |||
| Compatible OS *2 | Windows 10 / 8.1 / 8 / 7 / Vista , Mac OS 10.6 to 10.10 | |||
| Compatible Standards | Safety: cUL / CE mark, EMC: VCCI Class A / FCC Class A / EN55022 Class A | |||
