Product Description

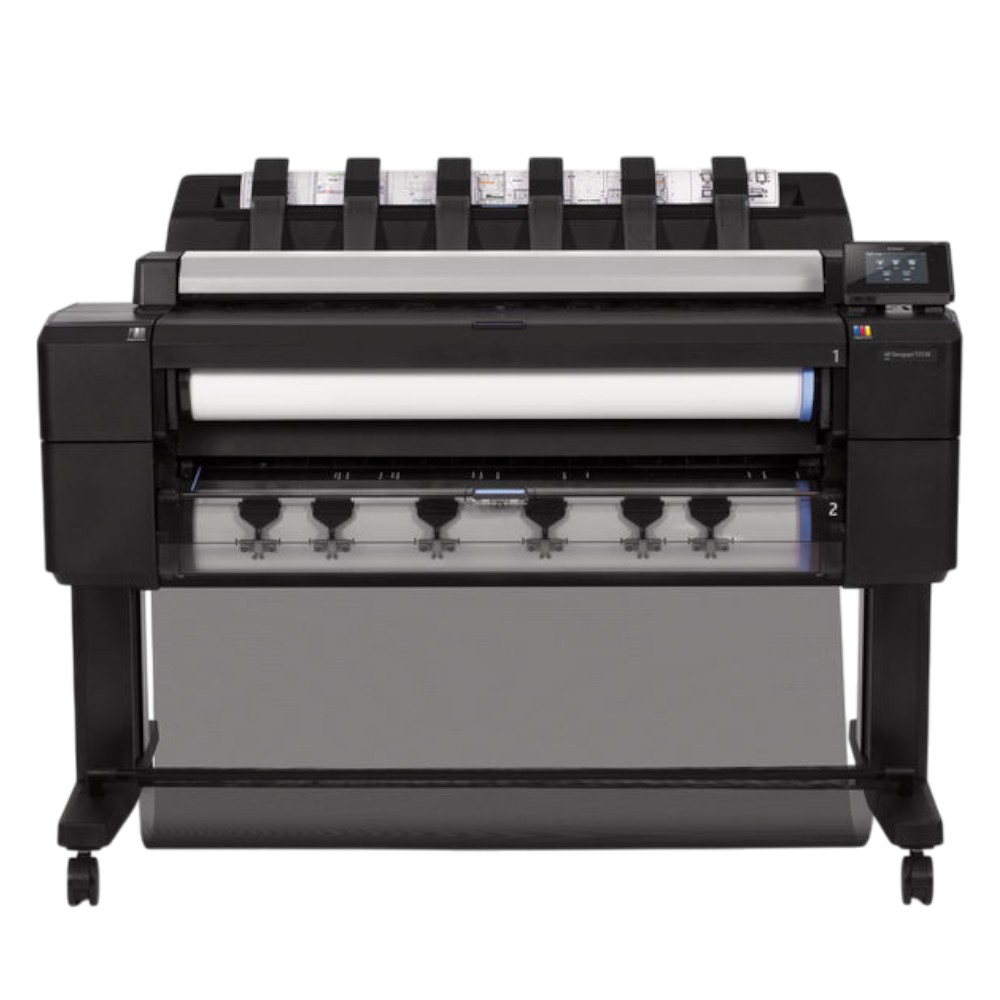

HP DesignJet T2530 36-inch Multifunction Printer
The HP DesignJet T2530 36-inch Multifunction Printer is a high-performance large-format printing solution designed for professional CAD, GIS, and technical documentation environments. With fast print speeds, precise line accuracy, and integrated scanning and copying, it supports demanding workflows with efficiency and reliability.
Key Benefits
- Fast large-format printing up to 120 A1/D prints per hour
- Integrated print, scan, and copy functionality
- Dual automatic roll feeds with smart media switching
- High-resolution output for detailed line drawings and maps
- Designed for professional CAD, GIS, and technical applications
Technical Specifications
| Functions | Print, Scan, Copy |
|---|---|
| Print Technology | HP Thermal Inkjet |
| Maximum Print Resolution | Up to 2400 x 1200 optimized dpi |
| Print Speed |
Line drawing (economode): 21 seconds per A1/D page Up to 120 A1/D prints per hour |
| Ink Type |
Dye-based: Cyan, Gray, Magenta, Photo Black, Yellow Pigment-based: Matte Black |
| Ink Droplet Size |
C, M, Y, G, pK: 6 pL Matte Black: 9 pL |
| Ink Cartridge Configuration | 6 cartridges: Cyan, Gray, Magenta, Matte Black, Photo Black, Yellow |
| Ink Cartridge Capacity | 130 ml or 300 ml |
| Margins |
Roll: 0.12 x 0.12 x 0.12 x 0.12 in (3 x 3 x 3 x 3 mm) Sheet: 0.12 x 0.87 x 0.12 x 0.12 in (3 x 22 x 3 x 3 mm) |
| Line Accuracy | ±0.1% |
| Minimum Line Width | 0.8 mil (0.02 mm), HP-GL/2 addressable |
| Guaranteed Minimum Line Width | 2.8 mil (0.07 mm) (ISO/IEC 13660:2001(E)) |
| Maximum Optical Density | Black: 2.15 D (6 L* min) |
| Applications | Line drawings, renderings, presentations, maps, orthophotos |
| Memory | 128 GB (file processing) |
| Hard Disk | 500 GB |
| Paper Handling |
Input: Two automatic front-loading roll feeds, smart roll switching, sheet feed Output: Integrated output stacking tray (up to 50 A1/D prints), media bin, automatic cutter |
| Supported Media Types | Bond and coated papers, technical papers, films, photographic papers, backlit media, self-adhesive materials |
| Media Sizes |
Rolls: 11 to 36 in (27.9 to 91.4 cm) Sheets: 8.3 x 11 to 36 x 48 in (21 x 27.9 to 91.4 x 121.9 cm) Standard sizes: A4, A3, A2, A1, A0 (A, B, C, D, E) |
| Media Thickness | Up to 19.7 mil (0.5 mm) |
| Roll External Diameter | 5.5 in (14 cm) |
| Connectivity | Gigabit Ethernet (1000Base-T), USB 2.0 |
| Printer Languages | HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF |
| Printing Paths | USB flash drive printing, email printing, HP drivers for Windows and macOS, HP Print Service Plugin for Android, Apple AirPrint |
| Scanner Type | Sheetfed CIS (Contact Image Sensor) |
| Scan Speed |
Color: up to 2.5 in/sec (6.35 cm/sec) Grayscale: up to 7.5 in/sec (19.05 cm/sec) |
| Scan Resolution | Up to 600 dpi |
| Maximum Scan Size |
JPEG: 36 x 315 in (91.4 x 800 cm) PDF: 36 x 197 in (91.4 x 500 cm) TIFF: 24 x 590.5 in (61 x 1,500 cm) |
| Copy Features |
Reduction/enlargement: 25–400% Up to 99 copies Advanced settings including background removal and blueprint support |
| Operating Conditions |
Operating temperature: 41 to 104°F (5 to 40°C) Operating humidity: 20 to 80% RH |
| Power Consumption |
Printing: 120 W Sleep: 1.3 W (5 W with embedded Digital Front End) |
| Certifications | ENERGY STAR®, WEEE, EU RoHS, China RoHS, REACH, EPEAT® Bronze |
| Dimensions (W x D x H) | 55.1 x 36.1 x 43.7 in (139.9 x 91.6 x 111 cm) |
| Weight | 245 lb (112 kg) |
Recommended Applications
- Architectural and engineering drawings
- CAD and GIS documentation
- Maps, plans, and orthophotos
- Technical presentations and renderings
- High-volume professional print environments
