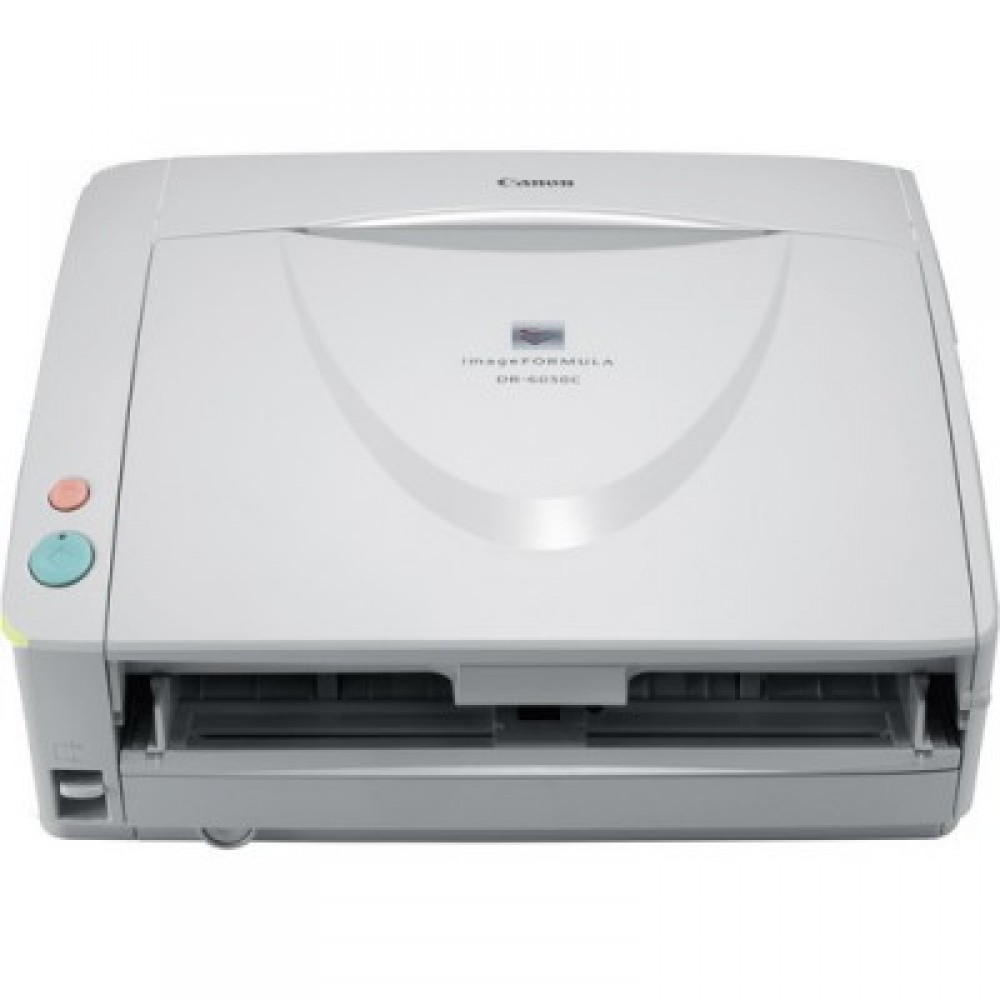

Canon imageFORMULA DR-6030C Departmental Document Scanner
The Canon imageFORMULA DR-6030C is an ultra-compact, high-speed A3 production scanner that offers excellent reliability and flexibility. It is the ideal solution for centralized or remote offices and specialist scanning bureaus that require dependable high-quality document digitizing.
Product Benefits
- Ultra-compact Design: One of the smallest A3 production scanners in its class, perfect for limited desktop spaces.
- Exceptional Speed: Rapid color scanning up to 80ppm (landscape) and 160ipm (duplex).
- Superior Image Quality: Advanced 3-line CMOS CIS sensor technology and dedicated text enhancement modes.
- Robust Reliability: Capable of handling a daily duty cycle of up to 20,000 scans.
- Energy Efficiency: Class-leading power consumption, using only 41.1W while scanning.
Key Features
The DR-6030C comes equipped with Kofax VRS, the industry's leading image processing software, ensuring every scan is optimized for OCR and data extraction. Its flexible paper path supports everything from fragile documents to plastic cards and long documents up to 3 meters. For added versatility, it is fully compatible with the optional Flatbed Unit 101/202.
Technical Specifications
| Type | Desktop Type Sheet Fed Scanner |
|---|---|
| Scanning Sensor Unit | CMOS CIS 3 Line Sensor |
| Optical Resolution | 600 dpi |
| Light Source | RGB LED |
| Scanning Side | Front / Back / Duplex |
| Interface | High speed USB 2.0 & SCSI-3 |
| Suggested Daily Duty Cycle | 10,000 to 20,000 scans/day |
| Landscape Speed (B&W/Color) | 80 ppm / 160 ipm |
|---|---|
| Portrait Speed (B&W/Color) | 60 ppm / 120 ipm |
| Output Resolution | 100 x 100dpi to 600 x 600dpi |
| Colour Mode | B&W, Error Diffusion, Greyscale (8-bit), 24-bit colour, Advanced Text Enhancement (I & II) |
| Width / Length | Width: 53 - 300mm | Length: 70 - 432mm |
|---|---|
| Thickness (U-turn Path) | 52 - 128g/m² (0.06 - 0.15mm) |
| Thickness (Straight Path) | 42 - 546g/m² (0.05 - 0.66mm) |
| Long Document Mode | Up to 3000mm Max |
| Feeder Capacity | 100 Sheets (80g/m²) |
| Paper Separation | Retard Roller Method |
| Dimensions (Tray Closed) | 398 (W) × 312 (D) × 191 (H) mm |
|---|---|
| Weight | Approx. 10.5 kg |
| Power Requirements | AC220 - 240V (50/60Hz) |
| Power Consumption | Scanning: 41.1W | Sleep Mode: 3.7W | Power Off: 0.04W |
| Acoustic Noise | Leading energy efficiency in its class |
Software & Compatibility
- Windows ISIS/TWAIN Drivers (Windows 2000/XP/Vista/7/8/10)
- Kofax VRS Image Processing Software
- CapturePerfect (Canon Scanning Software)
- DR Management Tool
Consumables & Options
- Consumable: Exchange Roller Kit
- Option: A3 Flatbed Scanner Unit 202
- Option: Flatbed Unit 101
