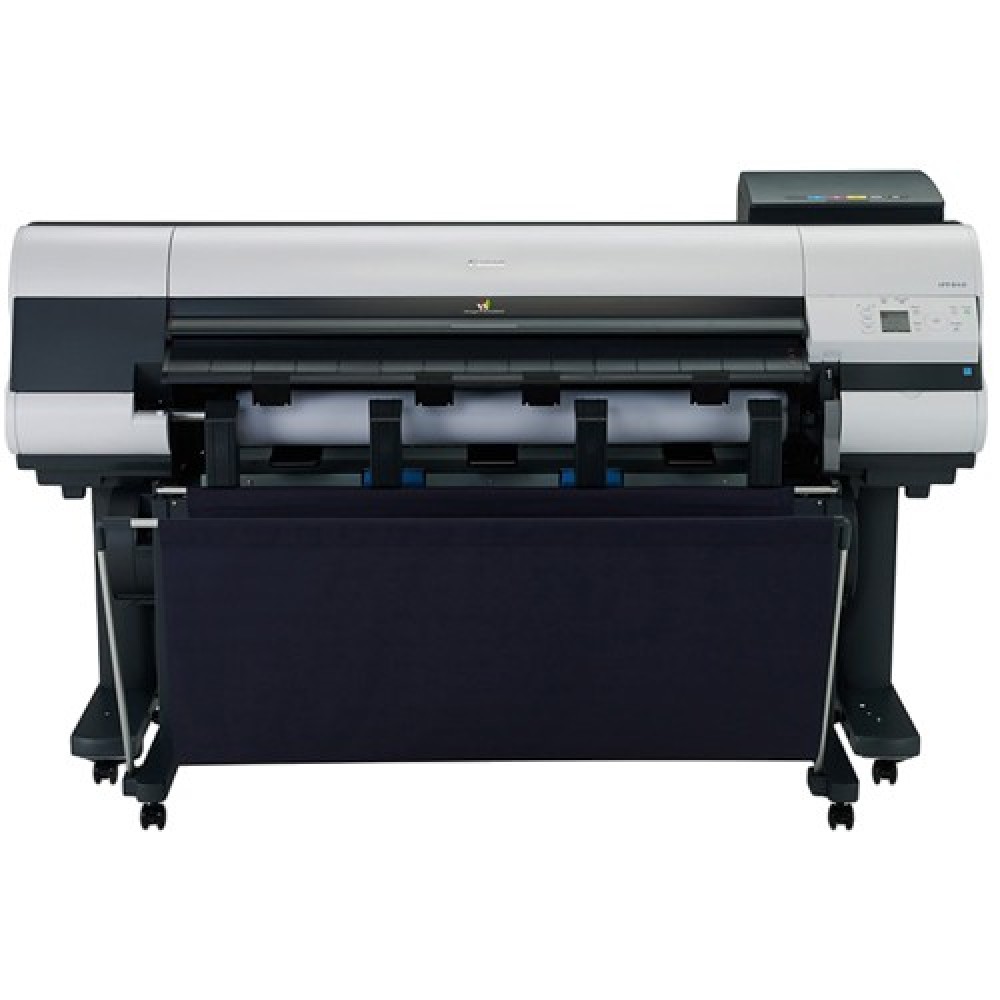

Canon imagePROGRAF iPF840 44" Large-Format Inkjet Printer
The Canon imagePROGRAF iPF840 is a 44-inch wide powerhouse printing system designed to enhance productivity for medium to large workgroups. Featuring dual media rolls and high-speed throughput, the iPF840 is a complete production printing solution for professionals producing intricately detailed CAD drawings, GIS maps, and full-color renderings.
Equipped with a built-in 320GB hard drive, this printer simplifies handling multiple complex jobs in shared environments. The unique sub-ink tank system enables "hot-swap" ink replacement for continuous printing, while the Economy Print Mode helps lower the total cost-per-print.
Product Highlights
- Dual Media Rolls: Automatic switching between different media types or sizes for high-volume jobs.
- High Productivity: 320GB hard drive relieves computer workload and manages shared environments easily.
- Exceptional Quality: 5-color Dye/Pigment Reactive Ink set for incredible line accuracy and vibrant color.
- Continuous Printing: Sub-ink tank system allows ink replacement without stopping the print job.
- Advanced Software: Optimized module for AutoCAD, Direct Print & Share, and PosterArtist Lite included.
Technologies
- FINE (Full-Photolithography Inkjet Nozzle Engineering)
- L-COA (Layout Printer Common Architecture) Processor
- Dye/Pigment Reactive Ink System
- Non-firing nozzle detection and compensation
- Dual Roll with Automatic Roll Switching
| Printer Type | 5-Color 44-Inch Printer |
|---|---|
| Nozzle Configuration | Total: 15,360 | MBK: 5,120 nozzles | C, M, Y, BK: 2,560 nozzles each |
| Print Resolution | 2,400 x 1,200 dpi (Maximum) |
| Ink Type | Dye/Pigment Reactive Ink |
| Ink Tank Capacity | 330ml or 700ml per color (PFI-307 / PFI-707) |
| Hard Drive Capacity | 320 GB |
| Ink Droplet Size | 4 Picoliter |
| Media Width | Roll Feed: 10" – 44" | Cut Sheet: 8" – 44" |
|---|---|
| Media Thickness | 0.07mm - 0.8mm (2.8 - 31.5 mil) |
| Max. Roll Print Length | Roll Feed: 59' (18 m) | Cut Sheet: 63" (1.6 m) |
| Maximum Roll Diameter | 5.9" (150 mm) |
| Borderless Printing | 10", 14", 17", 24", 36", 42" |
| Paper Feed Method | Dual Roll, Front Loading, Front Output |
| Standard Interfaces | USB 2.0 High-Speed, 10/100/1000 Base-T/TX (Ethernet) |
|---|---|
| Print Languages | GARO (Canon Proprietary), HP-GL/2, HP-RTL |
| Physical Dimensions | 75"(W) x 51"(D) x 45"(H) |
| Weight | Approximately 417 lbs (189 kg) |
| Power Consumption | Max: 190W | Standby: 5W | Power Off: 0.5W |
| Noise Level | Operation: 52 dB (A) | Standby: 35 dB (A) |
In The Box
- Main Unit with Stand & Portable Media Basket
- 2 - 2" Roll Holders with 3" Core Adapters
- PF-04 Print Head & Maintenance Cartridge (installed)
- 5 Starter Ink Tanks (C, M, Y, BK, MBK)
- Quick Setup Guide, Power Cord, and User Software CD
- PosterArtist Lite & Accounting Manager Software
